While shopping for a home Wi-Fi system, we often overlook DIY mesh options and opt for a purpose-built—or "canned"—solution. And that can be a grave oversight.
This post features five of the best do-it-yourself Wi-Fi mesh approaches, encompassing multiple Wi-Fi standards, that will give you super-fast speeds, reliable performance, or a ton of customization.
Most importantly, they all allow you to start with a standalone router and seamlessly scale up coverage as your needs grow.
Dong's note: I first published this post on January 18, 2023, and updated it on October 11, 2023, with up-to-date information.
DIY Mesh Wi-Fi systems: The top-five list
It's important to note that DIY mesh systems are not meant to be easy. All of the Wi-Fi ecosystems below will require some work.
But in my experience, none of the below options are too complicated, either. If you're willing to spend some time and have enough interest, you'll be able to figure one out with the help of the linked related how-tos and reviews. And knowing one likely means you'll be able to take on the rest. They are all the same in principle.
Making your own mesh Wi-Fi gives you the best control over the hardware and, hence, the performance, features, and, most importantly, the cost. Below is the list of the best DIY mesh Wi-Fi systems that will give you all those benefits and possibly more. I've used all of them, with great success, in various configurations and locations.
This list is sorted by the level of recommendation, from the least to the most. However, they are very similar and only differ by flavors and nuances—all options are semi-equally excellent.
 |  |  |  |  | |
| Name | Ubiquiti UniFi Mesh's Rating | EnGenius FIT DIY PoE Mesh's Rating | TP-Link Omada-based DIY PoE Mesh's Rating | Synology Wi-Fi Mesh System's Rating | Asus AiMesh's Rating |
| Price | - | - | - | - | - |
| Rating | |||||
| Description | |||||
| Statistics | |||||
| Buy this product |

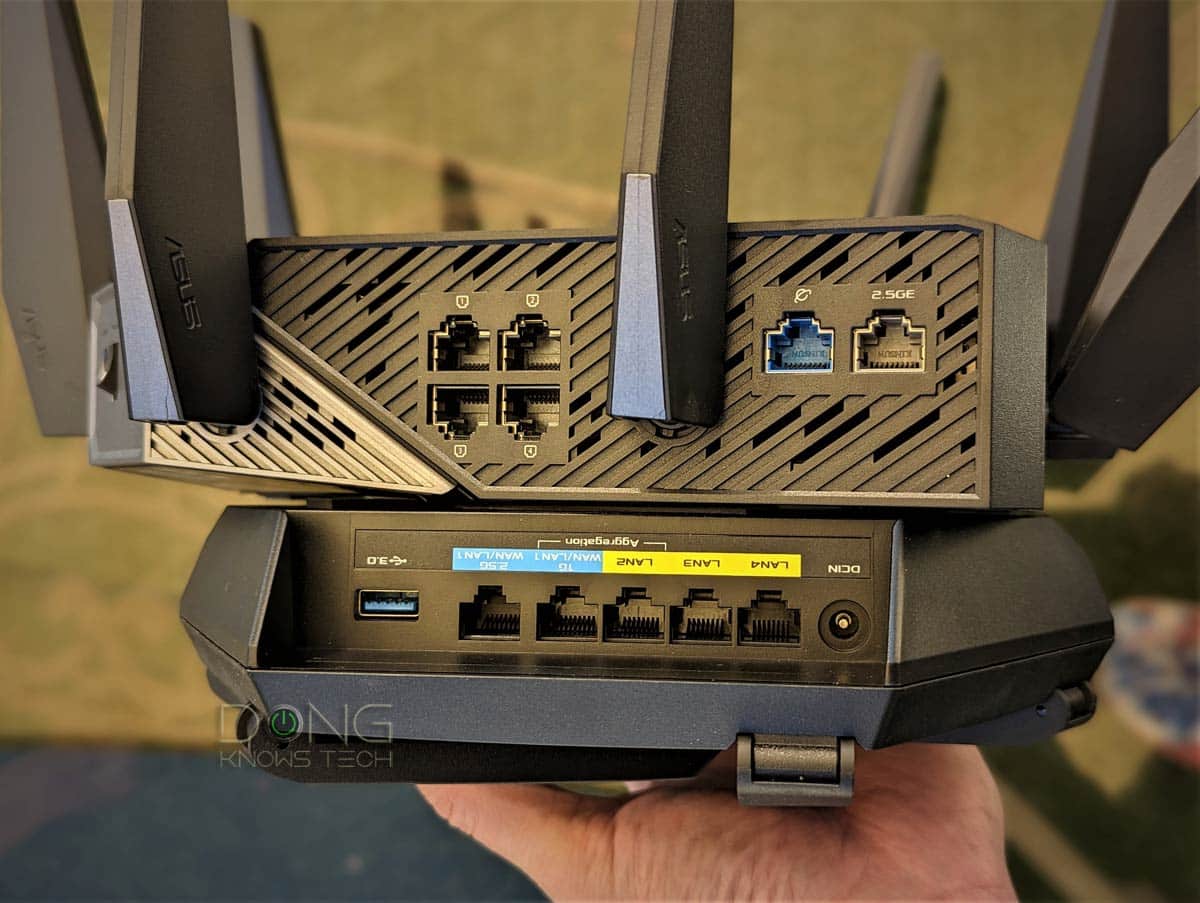

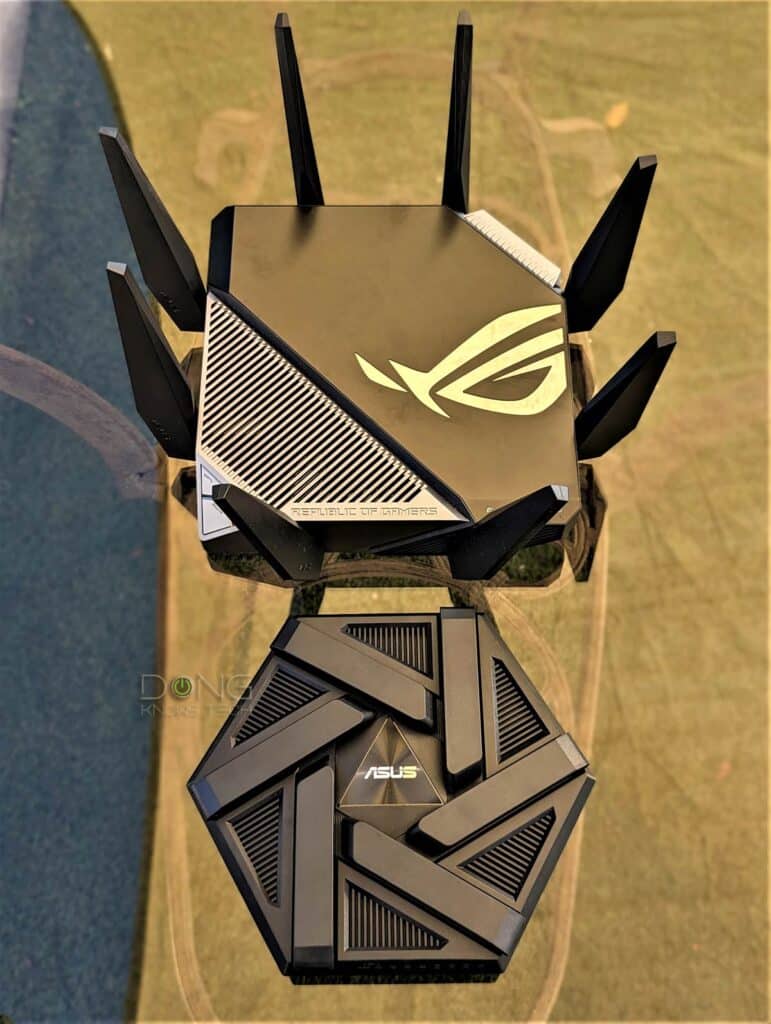

5. Asus’s AiMesh: The most versatile ecosystem
AiMesh is by far the most flexible in custom-built home mesh Wi-Fi systems thanks to the sheer number of available hardware—virtually all Asus Wi-Fi 6 and later routers support this feature.
Asus also has the ZenWifi family of canned systems built around the AiMesh feature.
Consequently, there are countless mesh combos, and since an Asus router generally has comprehensive network settings and features, an AiMesh system is also feature-rich.
But that hardware flexibility and versatility also translate into a big shortcoming: the likelihood of unreliability or unexpected bugs. To avoid those, it's crucial to pick the correct hardware combo and set it up properly.
Asus AiMesh's Rating
Pros
The most flexible way to build a robust, scalable home Wi-Fi mesh system
Excellent performance, top-notch feature set
Built-in online protection
No vendor login is required, or other privacy risks
Comparatively affordable
Cons
Certain router combos can be buggy or have issues with new major firmware releases.
Rigid Wi-Fi management when mixing hardware of different Wi-Fi tiers, standards, or number of bands
Only one Guest SSID (instead of three) per band can be made system-wide

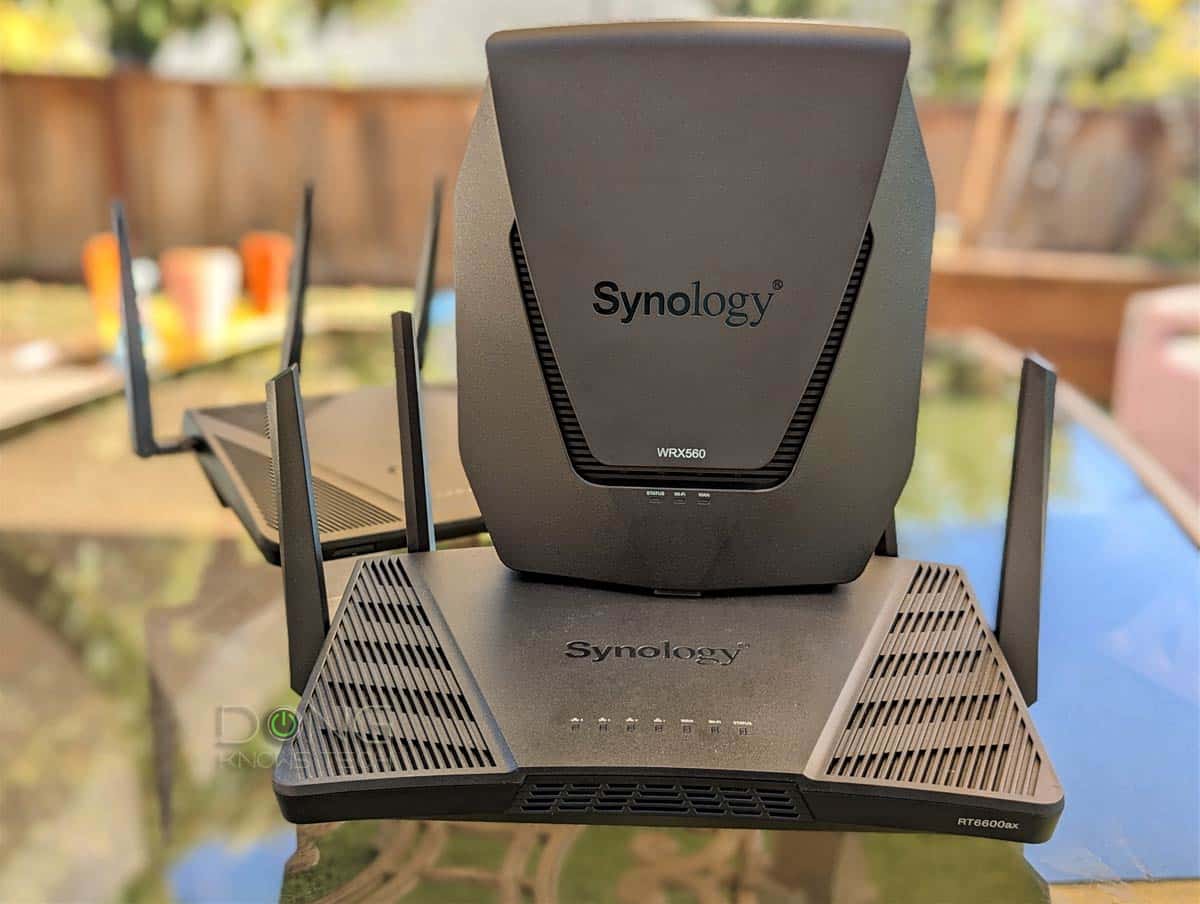

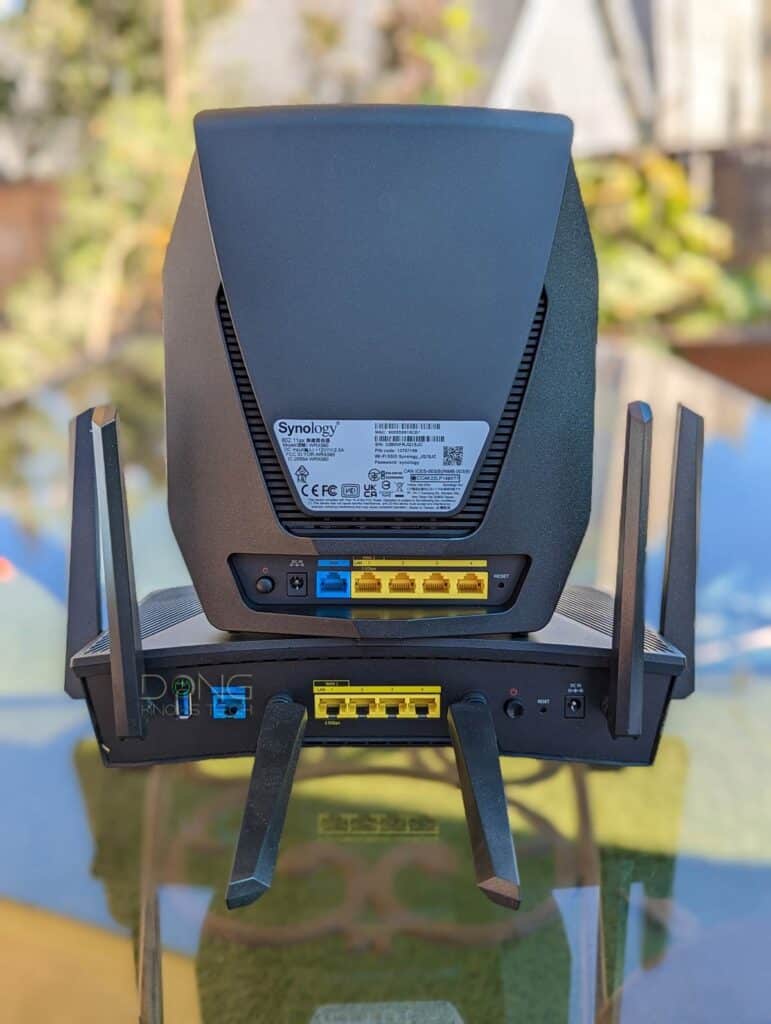

4. Synology Mesh: An enterprise-class mesh by home-grade hardware
Synology Mesh is the way I call the no-name feature that turns select Synology routers into a mesh system—similar to Asus's AiMesh. You start with a standalone router and add more to increase the coverage.
On the one hand, Synology Mesh tends to be a lot more stable than AiMesh, thanks to its enterprise-class firmware, called Synology Router Manager (SRM). On the other, it has only a few hardware options, and currently, none supports Multi-Gig wired backhauling.
Synology Wi-Fi Mesh System's Rating
Pros
Fast, reliable, and extensive Wi-Fi coverage
Advanced interface with high-quality add-on features
Highly customizable network and Wi-Fi settings
Effective Parental Controls and online protection
Advanced Guest network
Cons
Limited hardware and combo options, no satellite-only hardware, users have little control over the satellites
No 10Gbps or 5Gbps Multi-Gig option, no hardware with two or more 2.5Gbps ports

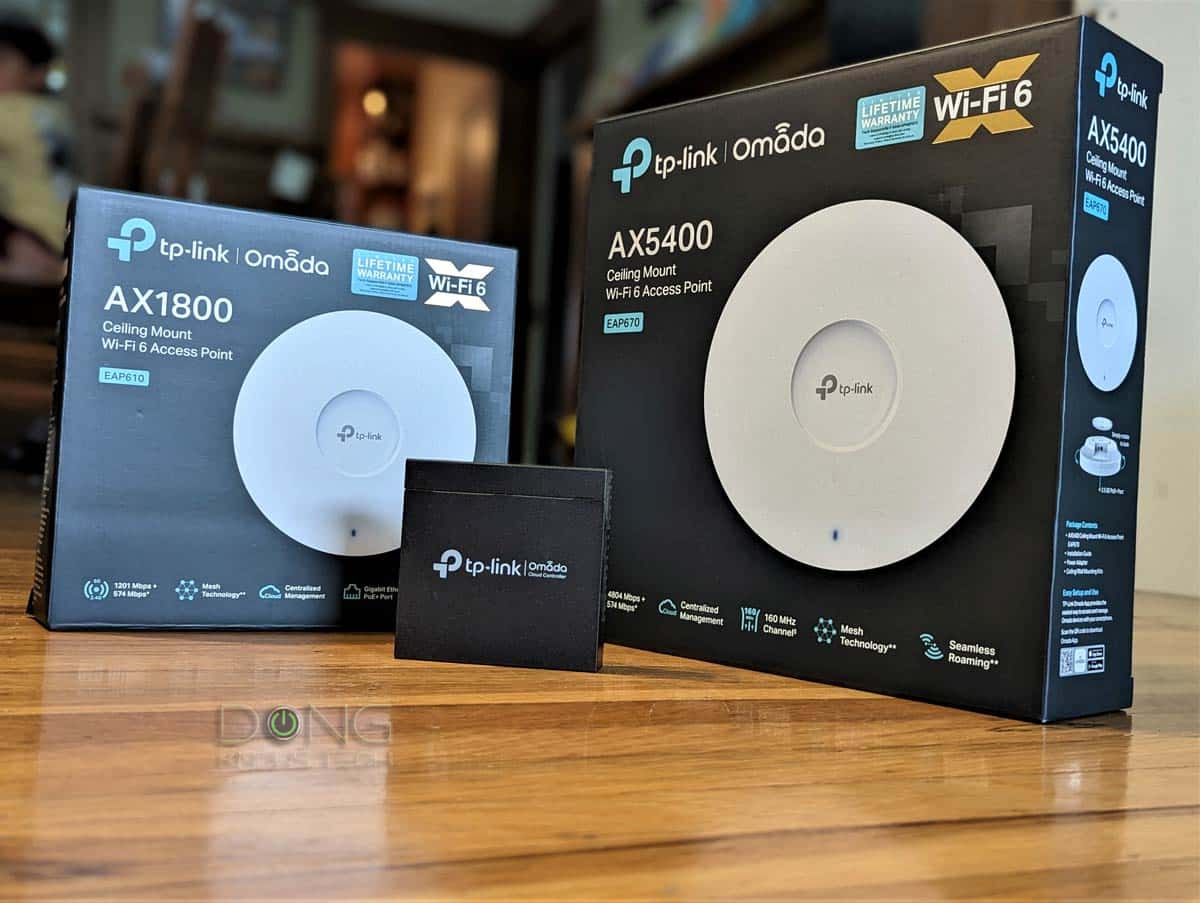

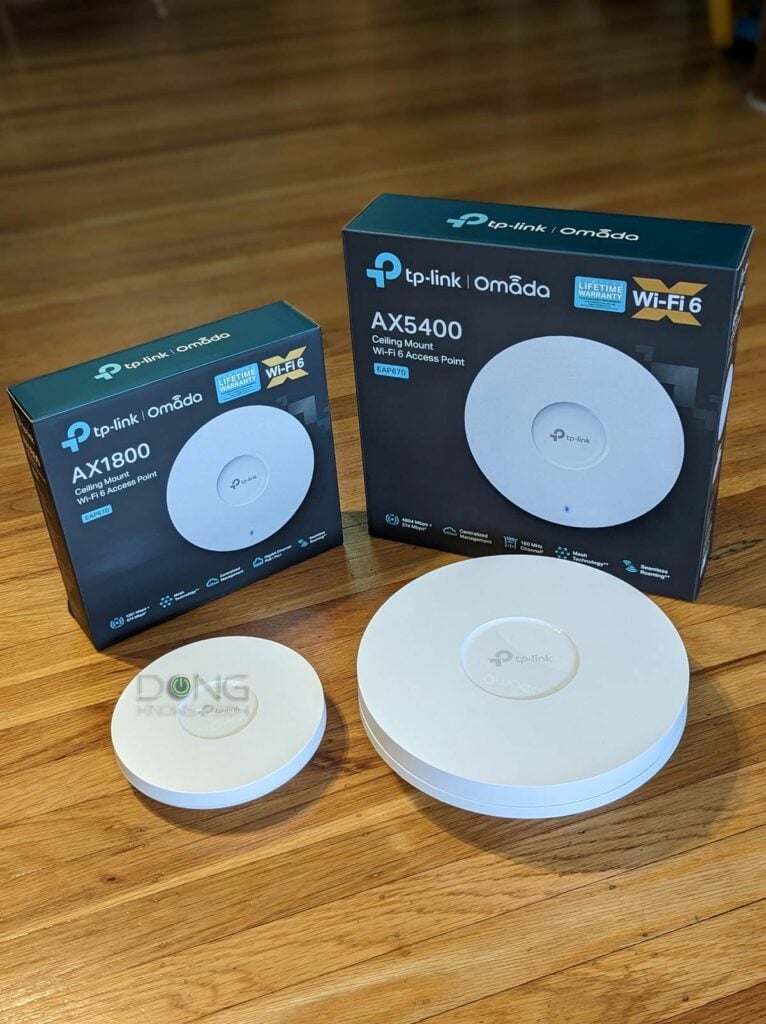

3. TP-Link Omada: A robust access point-based mesh with lots of hardware options
Omada is a family business access point. You can use a controller—in the form of a standalone hardware controller or computer running controller software—to manage multiple units as a robust mesh Wi-Fi system.
Like EnGenius FIT below, this approach is standard in business and enterprise Wi-Fi applications, available in known brands such as Cisco's Meraki, Netgear's Insight Managed, or Zyxel Nebula.
What sets Omada apart is its affordability—the hardware tends to cost significantly less than similarly-specced equipment from competing vendors. Additionally, the Omada family has access points to all popular Wi-Fi standards, including Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, and the upcoming Wi-Fi 7.
Generally, it's cheaper to go with Omada than with any canned system. Most importantly, you won't need to pay a subscription to use all of its features.
On the downside, you'll also need an existing router, preferably a non-Wi-Fi one.
TP-Link Omada-based DIY PoE Mesh's Rating
Pros
Excellent Wi-Fi coverage, fast performance
Affordable; easy setup option; no additional cost for management
Lots of mesh features and settings
Many APs include mounting accessories and PoE or power adapter
The system can be managed via a local web user interface, a useful optional mobile app
Cons
A controller is needed; the hardware controller can't work as a router, nor does it include a power adapter or PoE injector
Networking knowledge is required to set up and maintain

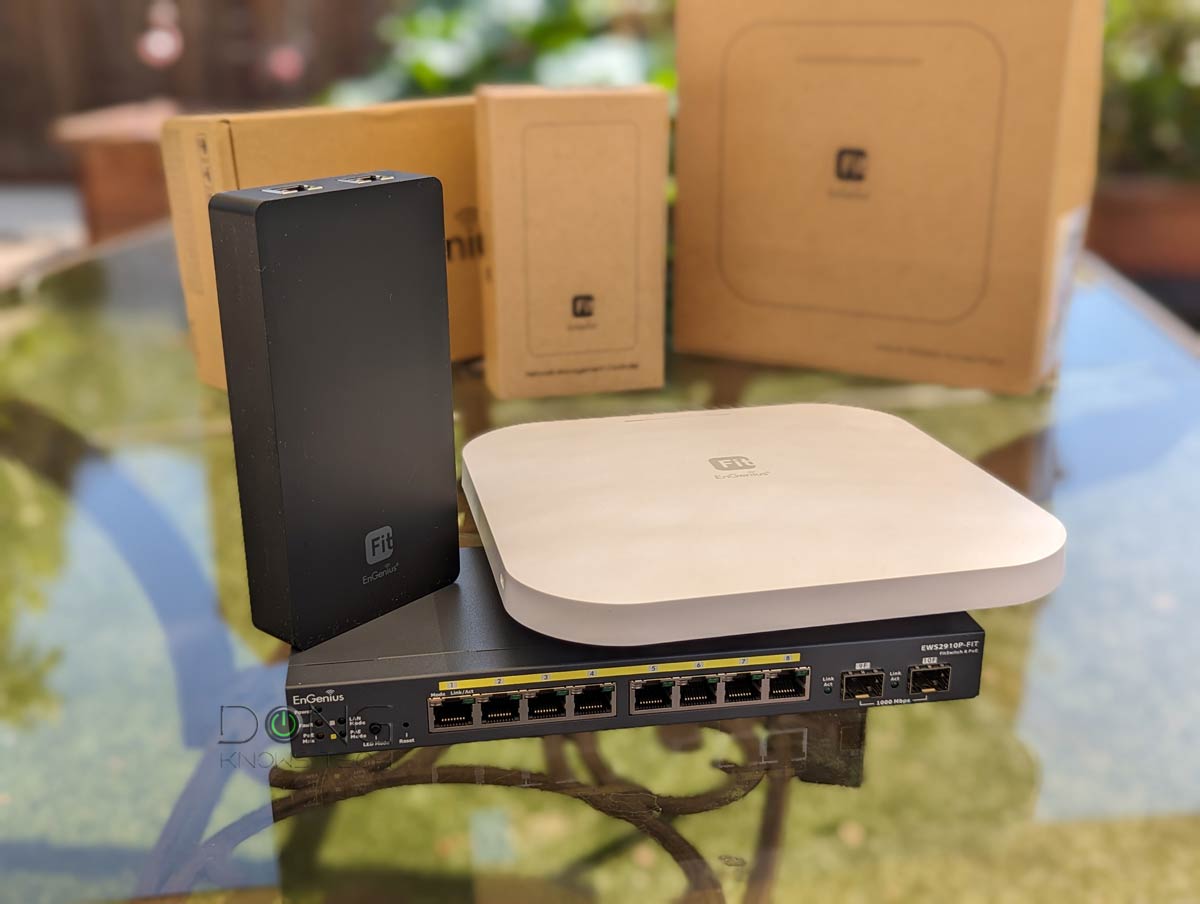

2. EnGenius FIT: A flexible access point-based mesh approach
The EnGeinus FIT is a newcomer in the router + access points mesh crowd. It shares the affordability with TP-Link's Omada above but has a bit more flexibility.
Specifically, all you need is two or more access points to form a mesh system, thanks to the cloud-based management built into the hardware's FitXpress firmware. Additionally, it has a hardware controller option that offers better performance, more features, and a larger-capacity network.
First introduced in October 2022, EnGenius FIT currently only includes Wi-Fi 6 access points, but there will likely be hardware support for Wi-Fi 7 in the future.
EnGenius FIT DIY PoE Mesh's Rating
Pros
Flexible hardware and software options with enterprise-class Wi-Fi and network customization; built-in could-based management with a hardware controller option
Comparatively affordable; easy setup option; no additional cost for management
The system can be managed via a local web user interface or cloud manage a useful optional mobile app
Cons
FitXpress has interface-to-hardware lag and doesn't support multiple sites of distinctive Wi-Fi needs; the FitCon100 controller is a bit confusing and tedious to set up
For now: No 160MHz Wi-Fi 6 or Wi-Fi 6E support, no Multi-Gig PoE switches, generally performance is limited at Gigabit
No support for WPA or older security; most PoE access points and controllers don't include a power adapter or PoE injector

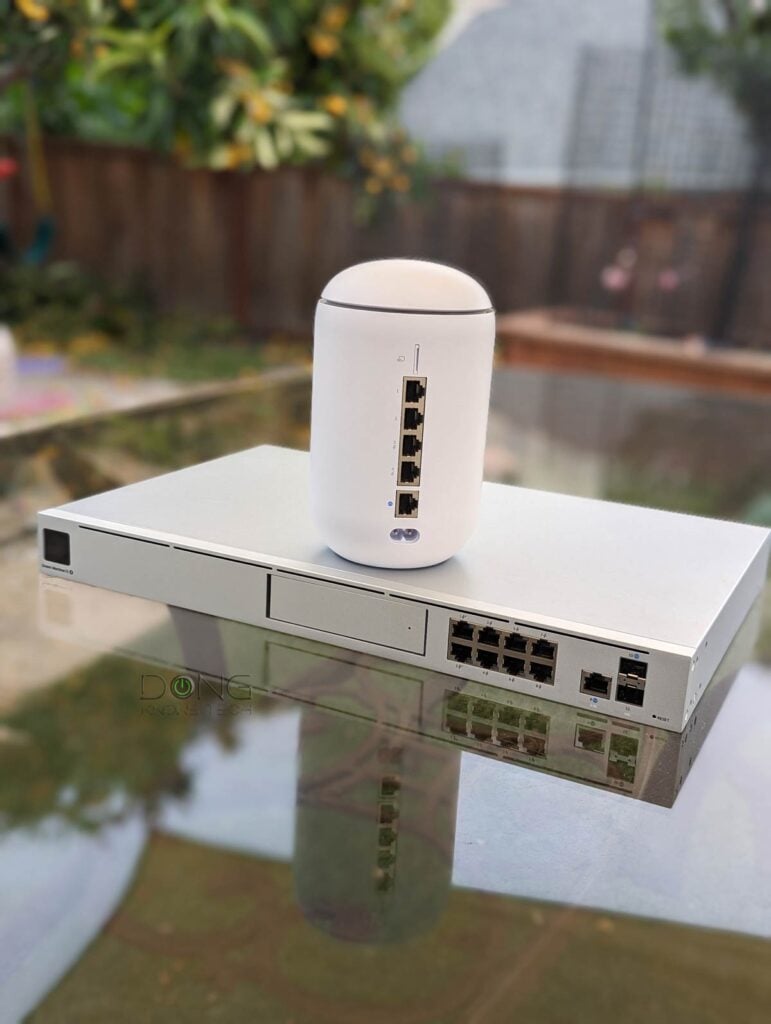

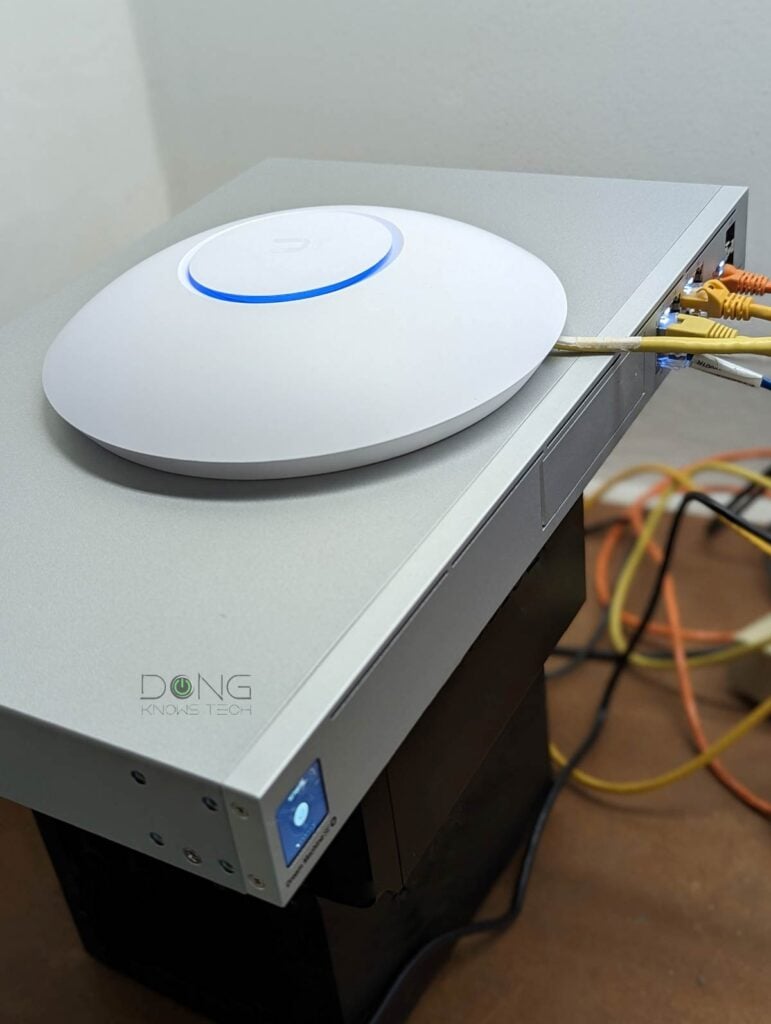

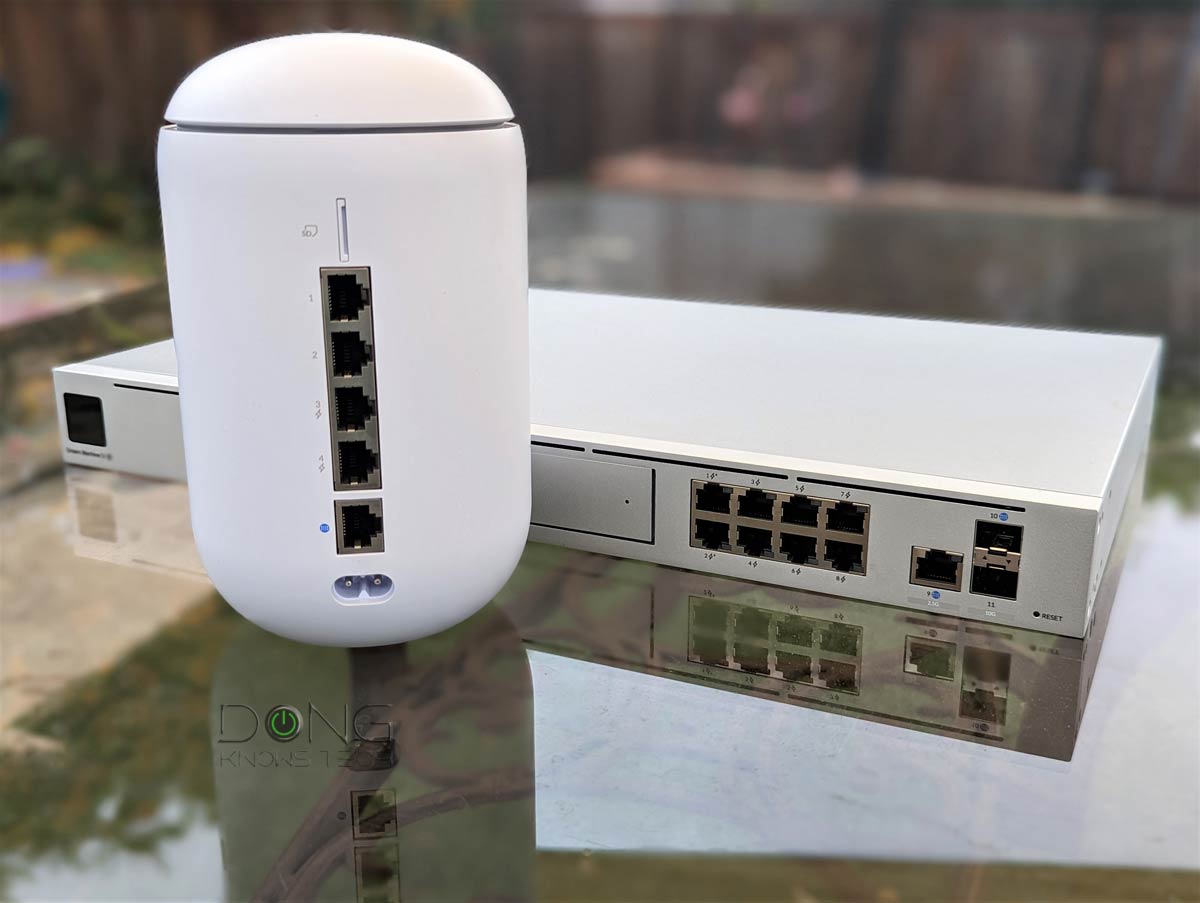

1. Ubiquiti UniFi: The most advanced all-in-one ecosystem for the home and SMB
UniFi is Ubiquiti's enterprise family of hardware. Initially, it's only relevant to home users via the Dream Machine (UDM) and, subsequently, the Dream Router (UDR). As the need for faster local networks and broadband grows, the Dream Machine Special Edition (UDM-SE) has now become the ultimate option.
You can use any of the routers as the controller for a network and add UniFi access points or wireless extenders, such as the Enterprise U6 or the BeaconHD or U6, to scale up coverage. Alternatively, you can also use third-party access points, including those mentioned in the Omada option mentioned above.
An UniFi mesh system is best-in-class in customizability and features. However, it requires networking know-how to figure out its advanced features.
Additionally, networking is just one of the many things an UniFi controller can do, such as VoIP phone or IP camera support, so things can become either exciting or overwhelming depending on the situation.
Ubiquiti UniFi Mesh's Rating
Pros
Seamless support for UniFi hardware; supports multiple hardware categories (Network, Protect, Talk, Access, etc.)
Reliable (Wi-Fi) performance with excellent coverage
Tons of useful networking features, a comprehensive web user interface, and a mobile app
Practical hardware design
Cons
Limited Multi-Gig support
Requires a login account to set up and manage

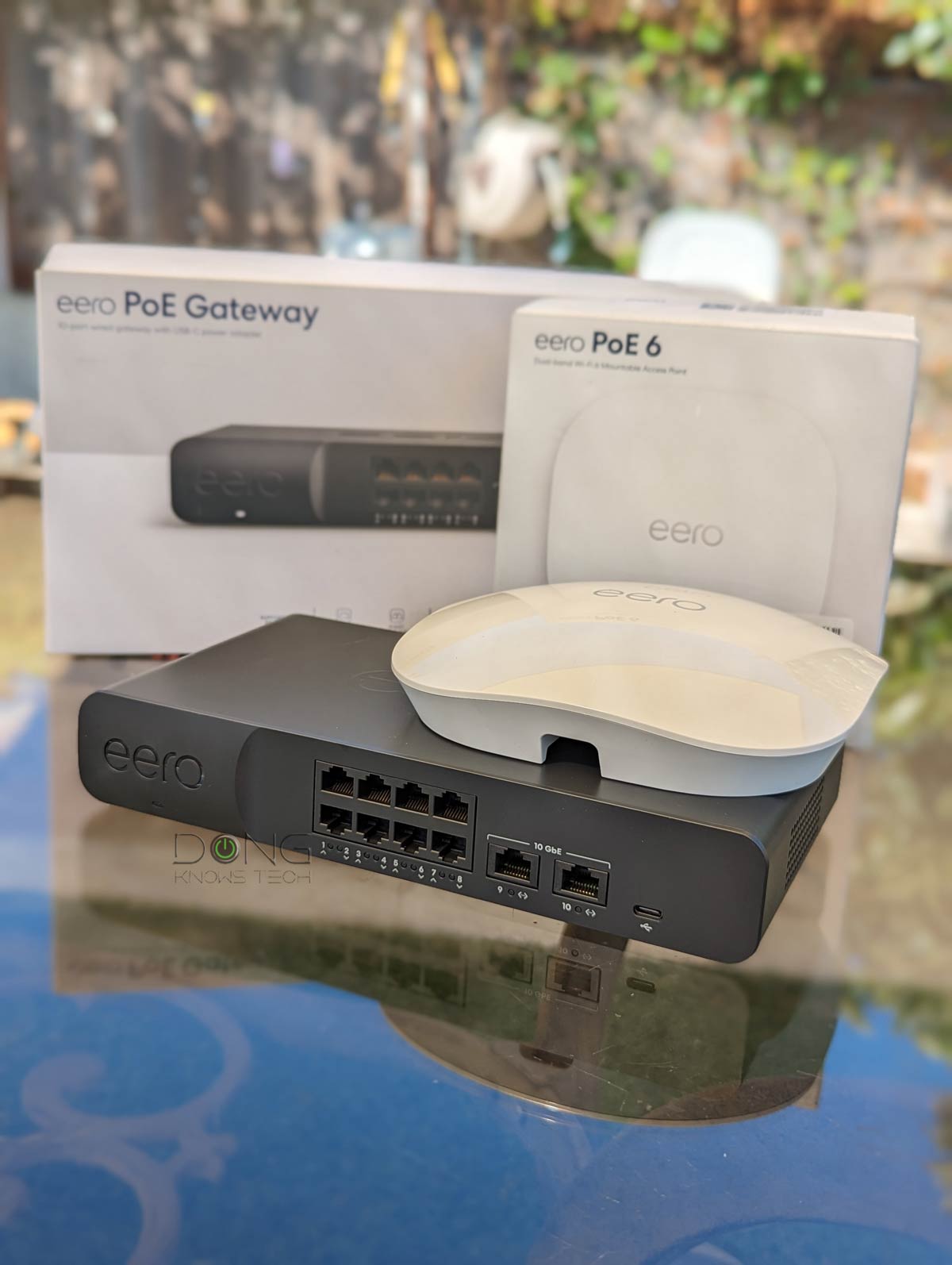

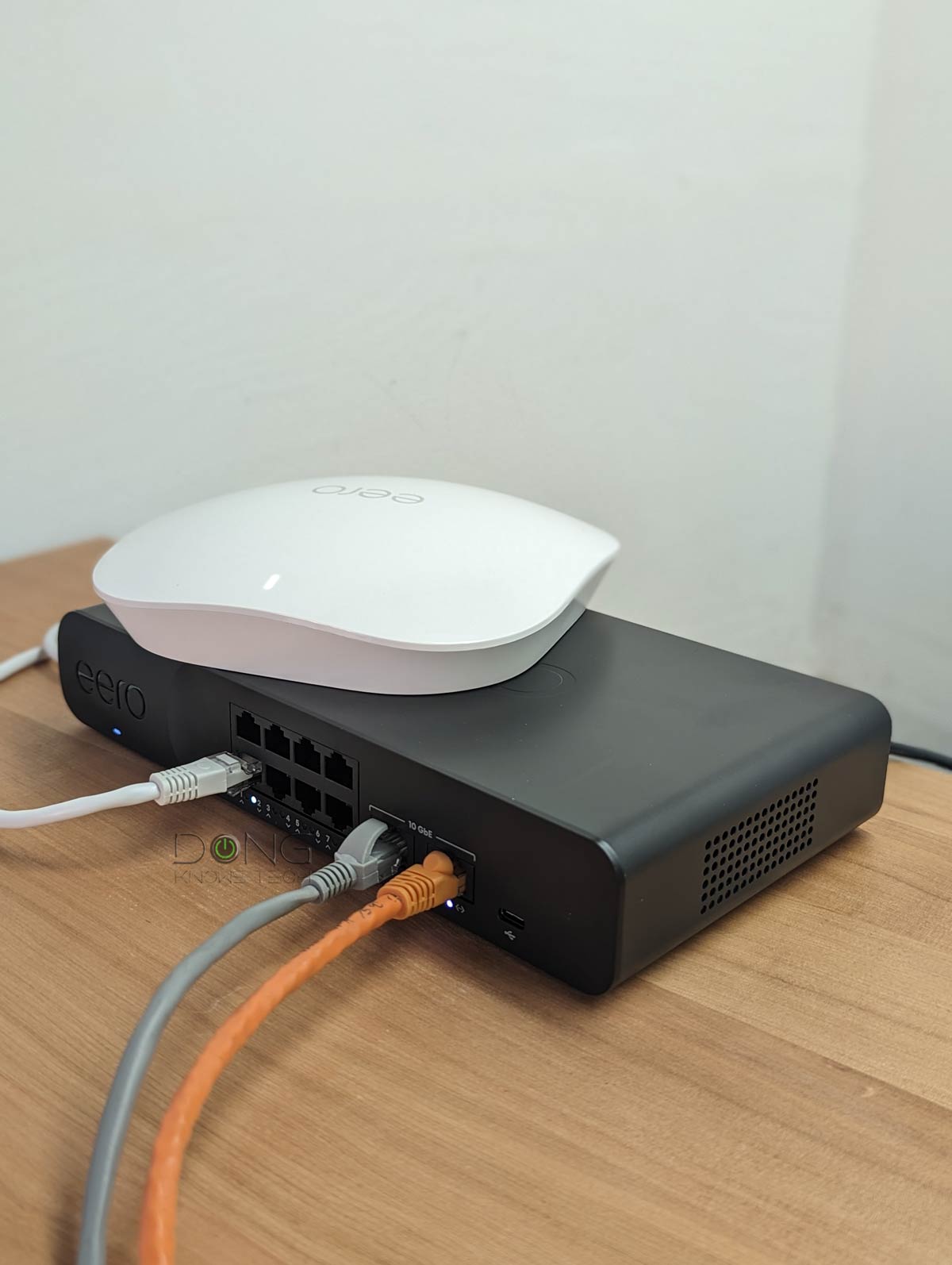

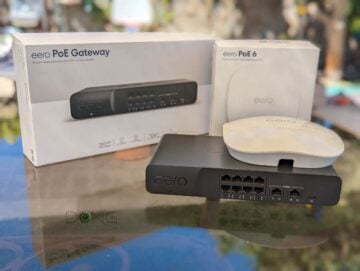

Extra: Amazon’s eero PoE hardware—the easiest way to get multi-Gigabit performance at a stupidly high cost
The combo of eero's latest PoE hardware, including the Amazon eero PoE Gateway and the eero PoE 6 access point, qualifies as a robust router + access points mesh approach.
While individually, each is greatly overpriced and limited, when working together, they become the easiest way to create a modern network with multi-gig wired backhauling. But as hardware from eero, this approach is poor in customization and includes lots of big and small unpleasant surprises, ranging from subscription nags to accessive heat to severe privacy risks.
Make sure you read their reviews to be aware of the catches before making the purchase.
Amazon Mesh with eero PoE Hardware's Rating
Pros
Two auto-sensing 10GBASE-T ports and eight PoE++ 2.5GBASE-T ports on the router and a 2.5GBASE-T POE port on the access point to deliver true multi-Gigabit wired performance
Compact design, easy to use
Good coverage, reliable performance
Cons
Expensive with extremely limited customizability and privacy risks
No web user interface (or desktop app) or command line support; no common business features, such as VLAN; all useful features (Dual-WAN, VPN, QoS, Parental Controls, etc.) require the eero Plus subscription
The router's internal fan is a tad noisy; runs very hot
The takeaway
Pick any of the options above, and you will get a mesh Wi-Fi system far better than any canned option of a similar price point.
And the fact that you can say you build and maintain it yourself is a satisfying bonus.
