TerraMaster F2-210 Review: Good Hardware, Unrefined OS

The TerraMaster F2-210 NAS server is an affordable alternative to the Synology DS218+. At half the cost, $150 disk-less, it’s quite a deal. To top that off, the new server is fast, has a responsive web user interface, supports 4K transcoding, and includes many add-on features.

But you do get what you pay for—this server trails behind its competitor quite significantly, both in software and design. Its operating system and features lack depth and a certain level of sophistication. The hardware itself seems unnecessarily bulky and is a tad noisy. Also, support for mobile users is almost non-existent.

That said, if you’re on a budget and looking for a simple, straightforward NAS server, the F2-210 is a decent buy. For a complete and refined experience, however, pick the DS218+ instead.

TerraMaster F2-210: Simple, bulky design

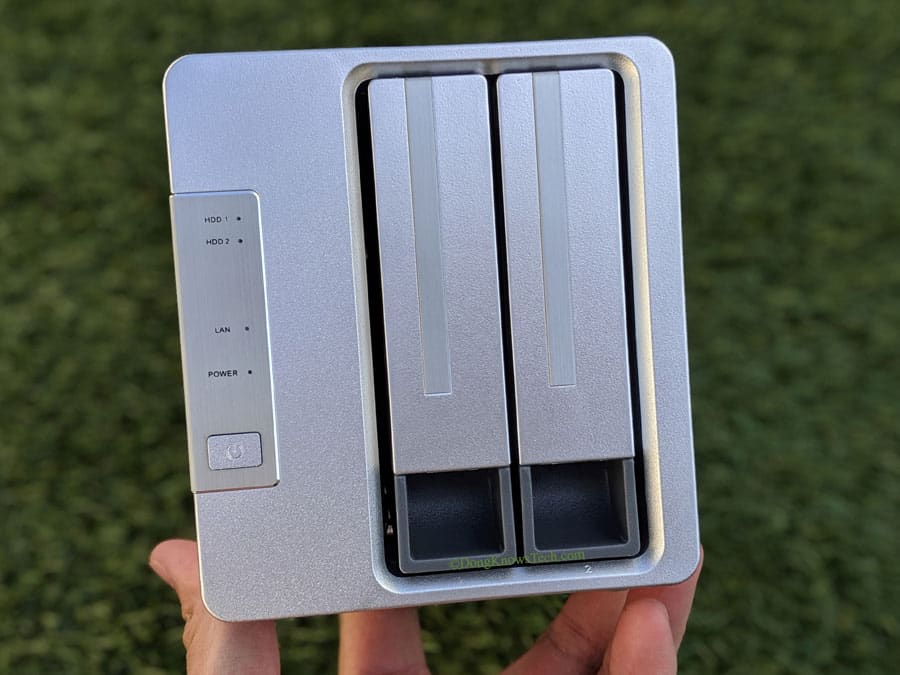

The TerraMaster F2-210 is a dual-drive server that can host two standard SATA hard disks with a front-facing drive bay.

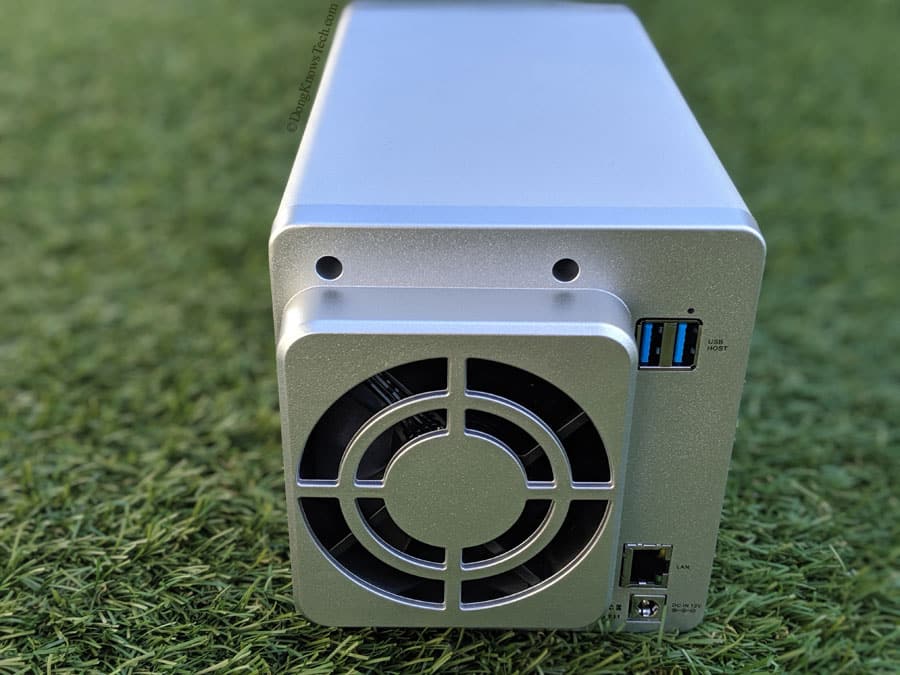

It has two USB 3.0 ports to host more storage space and a single Gigabit network port on the back. With no additional network port, the server lacks advanced network features, such as Link Aggregation.

The server is bulky and appears cheap when you look closely. Its thick aluminum body is not consistently smooth, especially at the edges, and its ventilation fan bulges out—kind of an eyesore.

By the way, this design turns the server into somewhat of an echo chamber. As a result, during operations, the server’s body magnifies the sound of the hard drives making it noisier than you’d expect.

TerraMaster F2-210: Hardware specifications.

CPU	Realtek RTD1296 Quad Core 1.4GHz
Hardware encryption engine	Yes
Memory	1GB (non-upgrade-able)
Hardware transcoding engine	10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1  Maximum resolution: 4K (4096 x 2160)  Maximum frame rate per second (FPS): 30
Compatible drive type	2 x 3.5″ or 2.5” SATA HDDs/SSDs  (drives not included)
Hot-swappable drive	Yes
External port	2 x USB 3.0 ports
Size (HxWxD)	8.93 x 4.68 x 5.23 in  (227 x 119 x 133 mm)
Weight	2.97 lbs (1.35 kg)
Network Ports	1 x Gigabit (RJ-45)
Wake on LAN/WAN	No
Scheduled power on/off	Yes
File Protocols	SAMBA/AFP/NFS/FTP/WebDAV
AC input power voltage	100V to 240V AC
Maximum storage capacity	28 TB (2 x 14TB drives)
Maximum local user accounts	128
Maximum share folders	128
Supported RAID type	Single, JBOD, RAID 0, RAID 1
Suggested retail price (disk-less)	$150
Warranty	2 years

Standard setup process

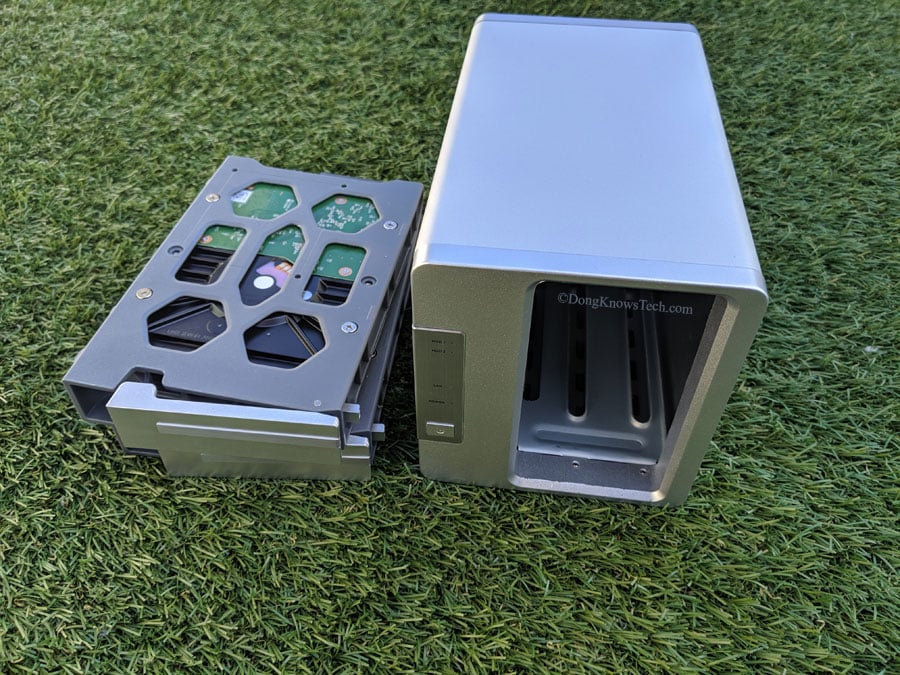

You need to use a crew driver to install the hard drives—the server has two drive trays that you can quickly insert or remove from the server. It’s a bit of work, but the server includes everything for you to get the job done.

You can set up the drives in RAID 0, RAID 1, or as two individual volumes. The F2-210 doesn’t feature a specific RAID, like Synology’s SHR.

Once the drives are in place, setting up the software was straightforward using the TNAS PC software application. This app detects the NAS in the network and helps launch the server’s web interface. The first time you do this, a wizard will walk you though the process of downloading and installing the operating system—called TerraMaster Operating System or TOS, currently at version 4.0 —  on the server. Then, you’ll need to create user accounts, pick a RAID, and the server is ready. From then on, you can go back to its user interface to make any changes.

One thing to note: In my testing, after the setup, the TNAS PC tool no longer detects the server. That said, make sure you remember to server’s IP address if you want to access its web user interface later. Or you can figure that out via your router’s interface.

Responsive, but quirky user interface

Since TOS is a Linux-based operating system, the F2-210 has a similar interface to Synology or Asus NAS servers. There’s a start button, a desktop with app icons, a Control Panel app for managing the server’s settings, and an Application App for adding/removing add-on features.

The interface itself is pretty responsive. I could open up multiple apps simultaneously, and most of them launch instantly with almost no lag.

However, the interface is generic, and unrefined with lots of issues. For one, all of the instructional and description texts seem shoddily translated from Chinese. At times, they make no sense. It’s generally hard to find things since there’s no search function. Something as obvious as the NAS server’s model number is nowhere to be found within the interface.

What’s more, the Start button only shows/hide running apps—all of them—and doesn’t do anything else. You can’t rearrange or group the icons on the desktop, either. If you have a lot of installed apps and a low-resolution screen, you won’t be able to see all the apps.

So, despite the fact it’s the 4.0 revision, TOS sometimes feels like it’s an alpha version of a real NAS operating system.

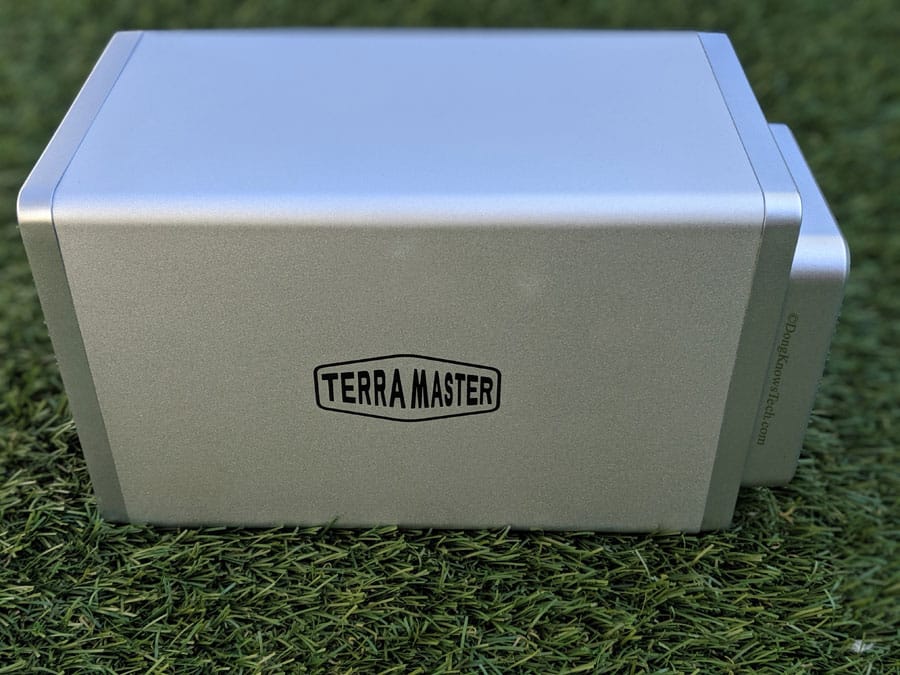

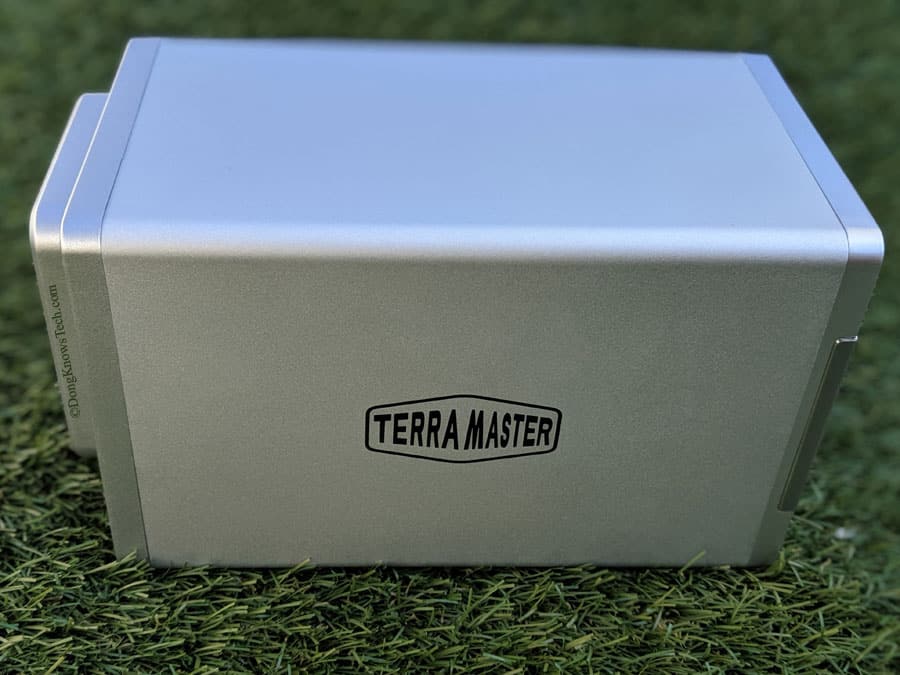

TerraMaster F2-210: Detail photos

TerraMaster F2-210: A good variety of (mostly) lackluster apps

The F2-210 comes with about thirty apps, which is plenty though not as impressive as the more than a hundred apps of the DS218+. And out of those apps, there are just a few popular ones for home users. I tried them out briefly, and all of them work as intended but all lack depth.

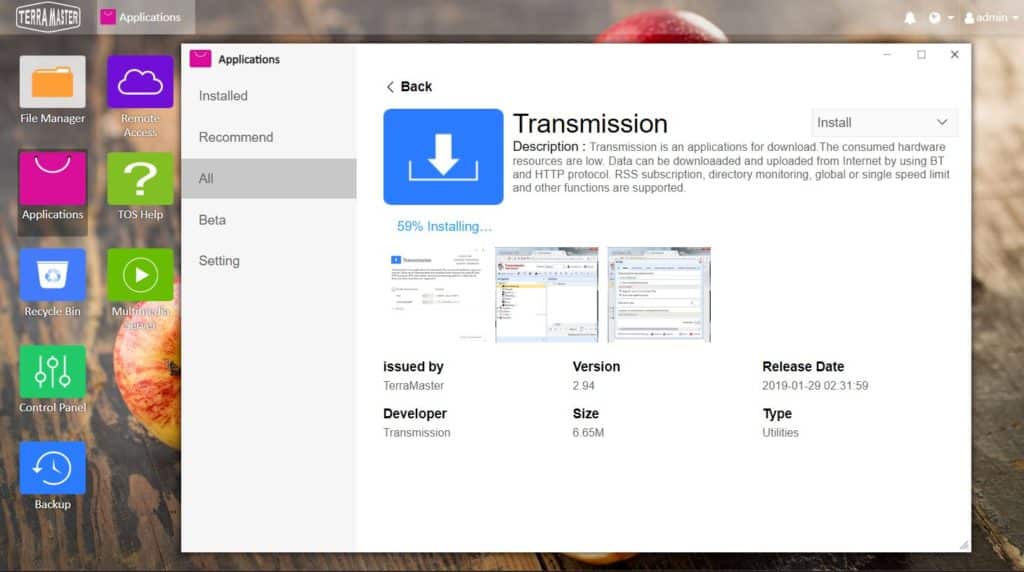

Take Transmission, for example; it’s an app for download, similar to the Download Station of Synology. You can’t search for what you need to download with this app. Instead, you have to get the download link or source and enter it into the app itself, making it a pain to use. The server’s Multimedia Server app doesn’t include a mobile app, and some of my network streamers didn’t detect it.

The apps that worked well in my tests are Snapshot and Backup. The former creates shadow copies of shared folders to keep the content safe from accidental data changes. The latter allows for different types of data backups. (By the way, the server supports RSync backup, enabling it to work with NAS servers from other vendors, including Synology.) But, still, both of these apps are not as refined as their Synology counterparts.

Easy remote access, no Active Directory integration

The F2-210 has a remote access setting called TNAS.online—a replica of Synology’s QuickConnect. You first register the server with a unique name, such as DongKnowsTech.

After that, point a remote computer to the unique address—TNAS.online/DongKnowsTech in my case –, and you’ll be able to access the server from anywhere in the world. TerraMaster says there’s a TNAS Online mobile app that takes advantage of remote access for the mobile user, but I couldn’t find it at any app store at the time of this review.

Speaking of mobile apps, there seems to be just one TNAS File Explorer app available during my review, which only works locally. Overall, TerraMaster is behind most other NAS vendors when it comes to supporting mobile devices.

Business user beware, the F2-210 doesn’t support Active Directory integration. As a result, in an office powered by a Windows server, you can’t manage the NAS server’s shared folders via the domain controller’s user management.

TerraMaster F2-210: Quite fast performance

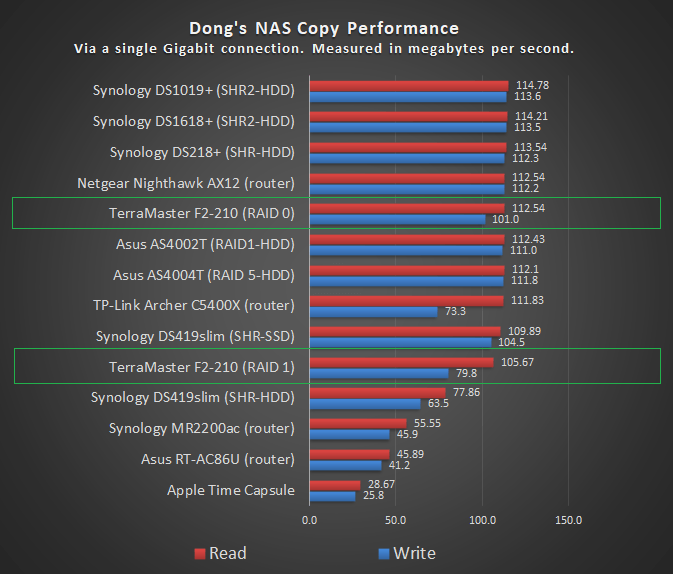

For throughput performance, I tested the TerraMaster F2-210, with two 6TB WD Red hard drives, both in RAID 1 and RAID 0, and it performed admirably, considering its cost. Keep in mind; it wasn’t in any way the fastest I’ve seen, as you can see in the chart below.

It’s important to note that you should use the server in RAID 1 since RAID 0 offers no data protection.

I used the F2-210 for almost a month, and the server proved to be reliable during this time. It was always online and responsive. By the way, like Synology servers, you can program the F2-210 to turn itself on or off automatically based on a schedule.

Conclusion

Thanks to the low price and decent hardware, the TerraMaster F2-210 has a lot of potentials. If you have never used a NAS server from  Asus, QNAP, or especially Synology before, chances are you’ll be happy with it.

However, anyone with prior experience with a more sophisticated server will find the F2-210’s OS sorely lacking. TerraMaster is headed in the right direction, but there’s a long way before it can catch up with other NAS vendors.

Until then, the TerraMaster F2-210 is an OK entry-level server for those who want to dapple into the world of network storage without spending a lot—and, again, they get what they pay for.
