Wi-Fi access points (WAPs, or APs) are similar to extenders, with one significant difference: an AP connects to the existing network, namely your router, using a network cable. And that changes everything.
While APs might sound foreign, they are the hardware component that broadcasts Wi-Fi signals inside Wi-Fi routers.
Separating the AP from the router is an excellent way to build an effective Wi-Fi network in a wired environment where the Internet terminal is not located at the center or any place suitable for a wireless broadcaster—a closet, a concrete basement, or a metal box. In this case, using a standalone access point connected to a non-Wi-Fi router is the best approach for optimal coverage.
In this post, I'll explain briefly the idea of Wi-Fi access points and offer tips on picking the best one for your network. If you're already in the know and want to buy one today, here's the list of the top six access points among those I've tested:
Dong's note: I first published this post on February 1, 2023, and updated it on April 18, 2024, to maintain relevant information.
Wi-Fi Access Points: Building a network with wired backhauling
Using a Wi-Fi access point means you build a network using network cables. That's the traditional and the only way to have a top-performance network. That's especially true with the help of Multi-Gig.
But first, what exactly is an access point?
Access points in a nutshell

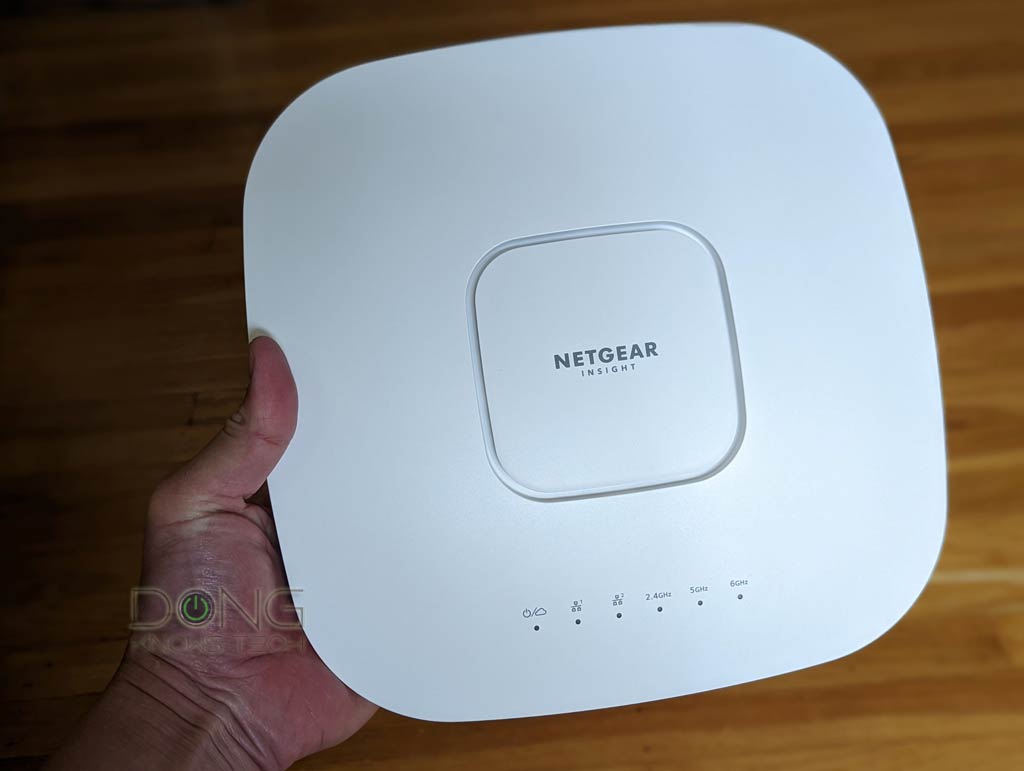

As mentioned, an access point (AP) is a device that broadcasts Wi-Fi signals. It's the minimum requirement for an infrastructure Wi-Fi network. In many ways, an AP is like a network switch, but instead of Ethernet ports, it incorporates radio bands that emit wireless data signals using one or more Wi-Fi standards for clients to latch on.
An AP must have at least one network port to connect to the existing network. Some even have more for you to host wired clients. Many access points also feature Power-over-Ethernet (PoE), allowing you to avoid running electrical wire to its location—the network cable also delivers power.
So, in a sentence, an AP is the required hardware component for a local network to host devices without running network cables to them.

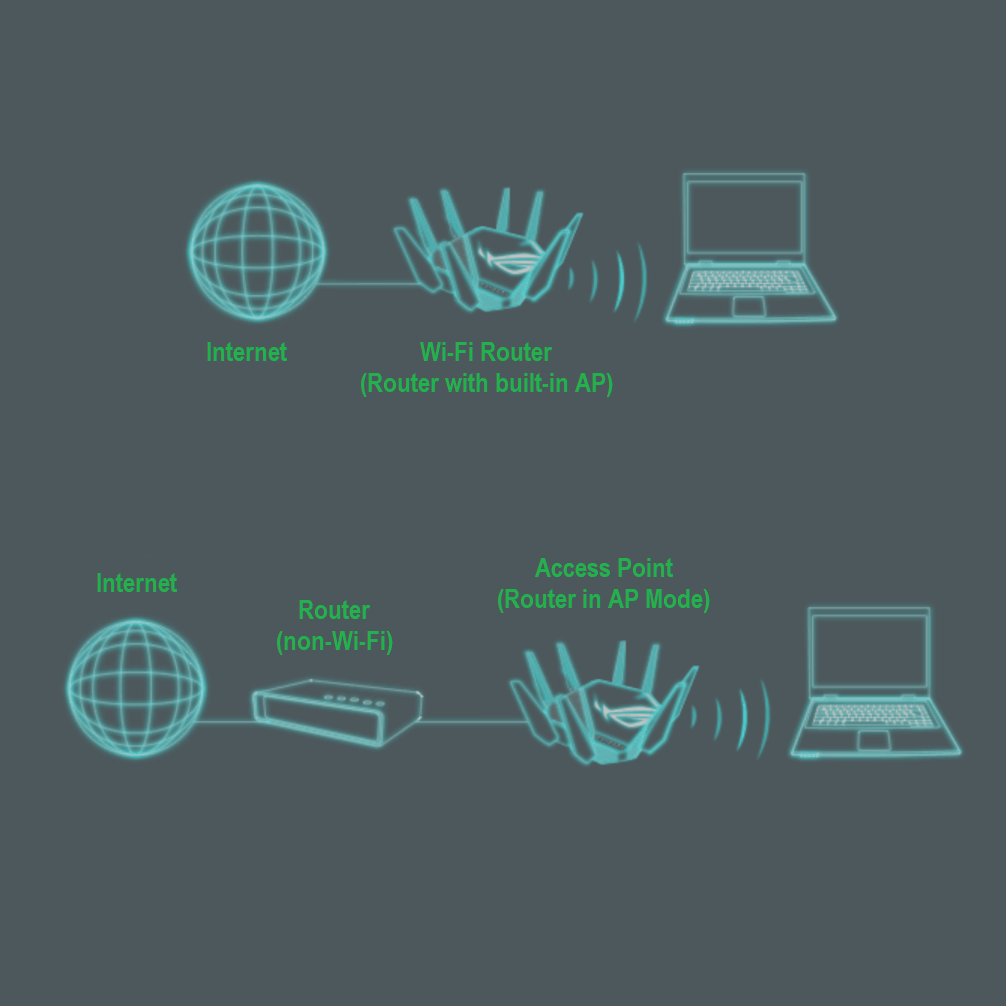

Access points vs. Wi-Fi routers
We often experience Wi-Fi via a Wi-Fi router—or an ISP-supplied residential gateway. A Wi-Fi router is a standard router with built-in Wi-Fi access points. You have multiple functions in a single hardware box. As a result, you can use most Wi-Fi routers as:
- A standalone access point: When you change its role into such or turn off its routing function.
- A non-Wi-Fi router: When you turn off its Wi-Fi function.

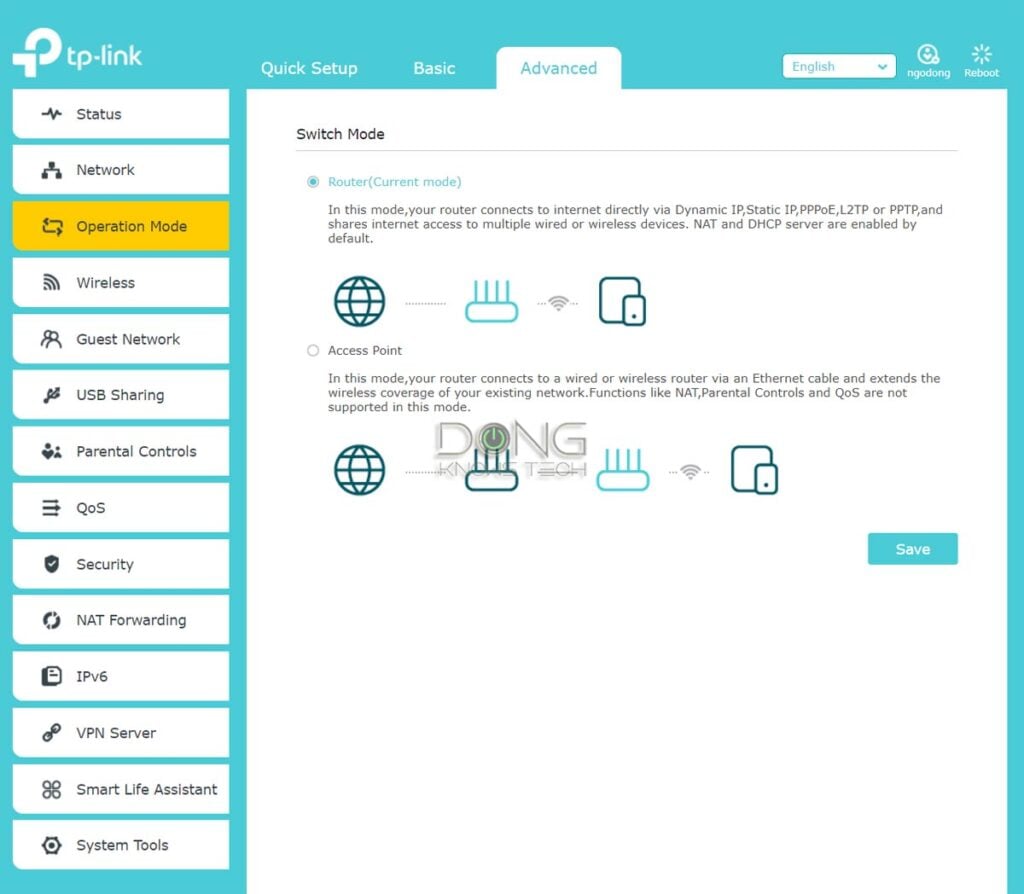

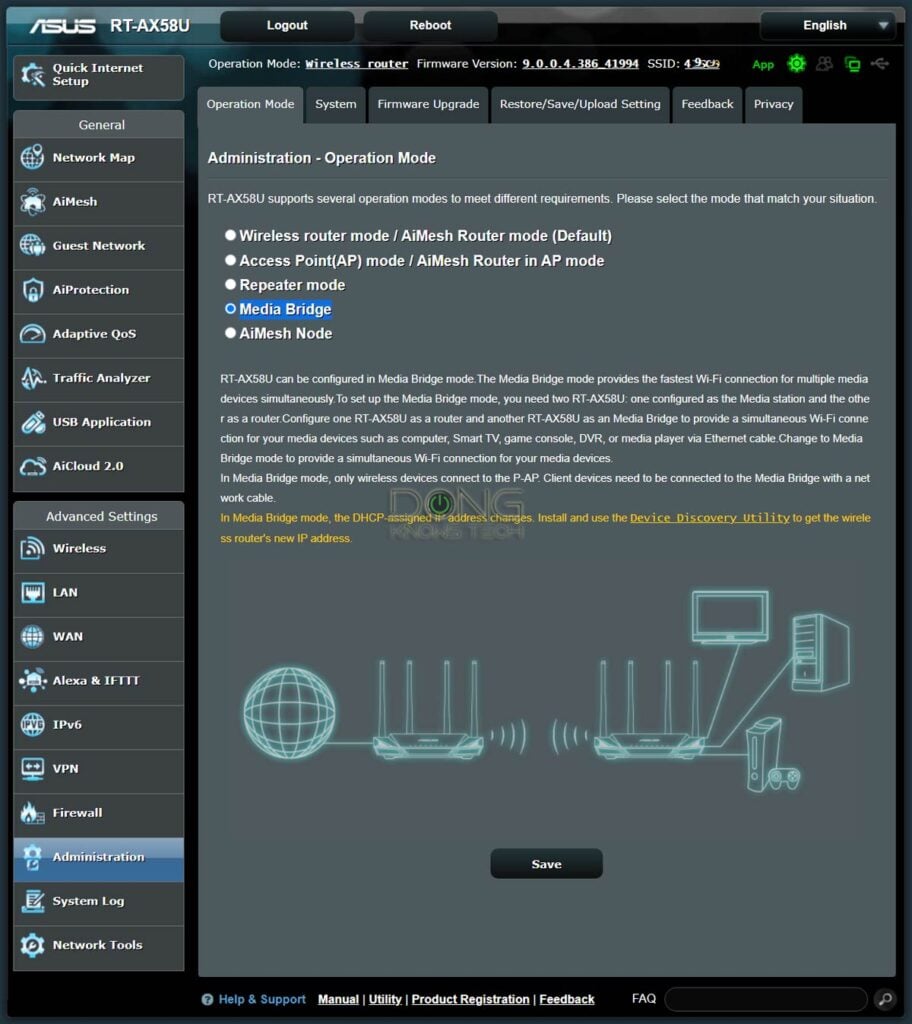

The cabinet below highlights the roles of most Wi-Fi routers.
Popular roles of a Wi-Fi router
Below is the breakdown of four typical roles of a router. Not all hardware supports all of these, but most will have at least the first one plus another.
Some routers have even more roles—those from Asus, for example, also feature the proprietary AiMesh node role.
1. Wireless Router
This role is the default—the hardware will work as such unless you actively change that.
The hardware works as a Wi-Fi router that obtains an Internet connection and distributes it to the rest of the network via wired and Wi-Fi connections.
In this role, you must use the router's WAN port for the Internet source. It's also the only role in which the router's routing and networking features (QoS, Parental Control, Dynamic DNS, VPN server, port-forwarding, etc.) are available.
Essentially, the hardware is now a standard routing box with a built-in managed switch and Wi-Fi access point(s).

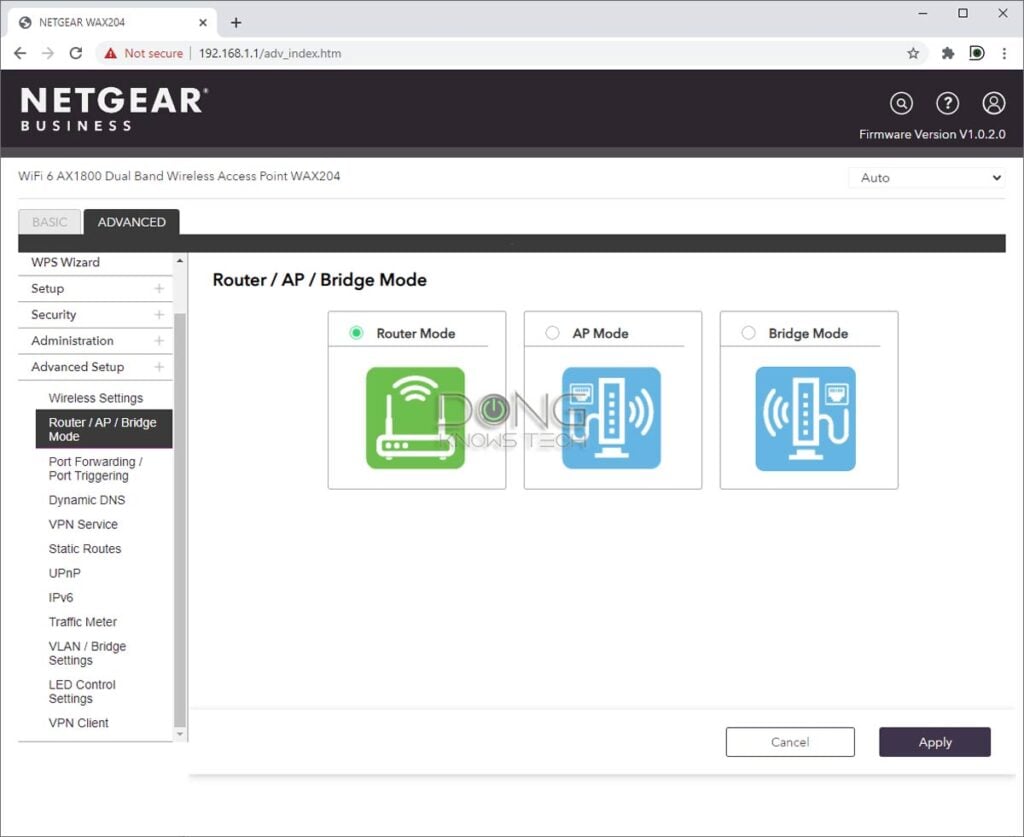

2. Access Point (AP)
Important note: Certain vendors call this role "Bridge."
In this mode, the hardware now works as an access point. It connects to an existing router via a network cable and extends the network farther, both wired and wireless.
In this role, none of the routing and features are available. All of the device's network ports function as LAN ports. Essentially, the router is now a network switch with built-in Wi-Fi broadcaster(s).
By the way, if you have a Wi-Fi 6 router with a Multi-Gig WAN port, using it as an AP is the only way you can take advantage of this port's high speed locally—without a Gig+ Internet connection, that is—assuming you have a Multi-Gig switch.
3. Repeater
The router now works as a Wi-Fi extender.
Specially, you use one of its bands (2.4GHz, 5GHz, or 6GHz) to connect to an existing Wi-Fi network—this is the backhaul band. After that, you can configure one or all of its bands (including the backhaul band) with separate SSID(s) to serve clients.
In this mode, all of the router's network ports will work as LAN ports of the existing network.

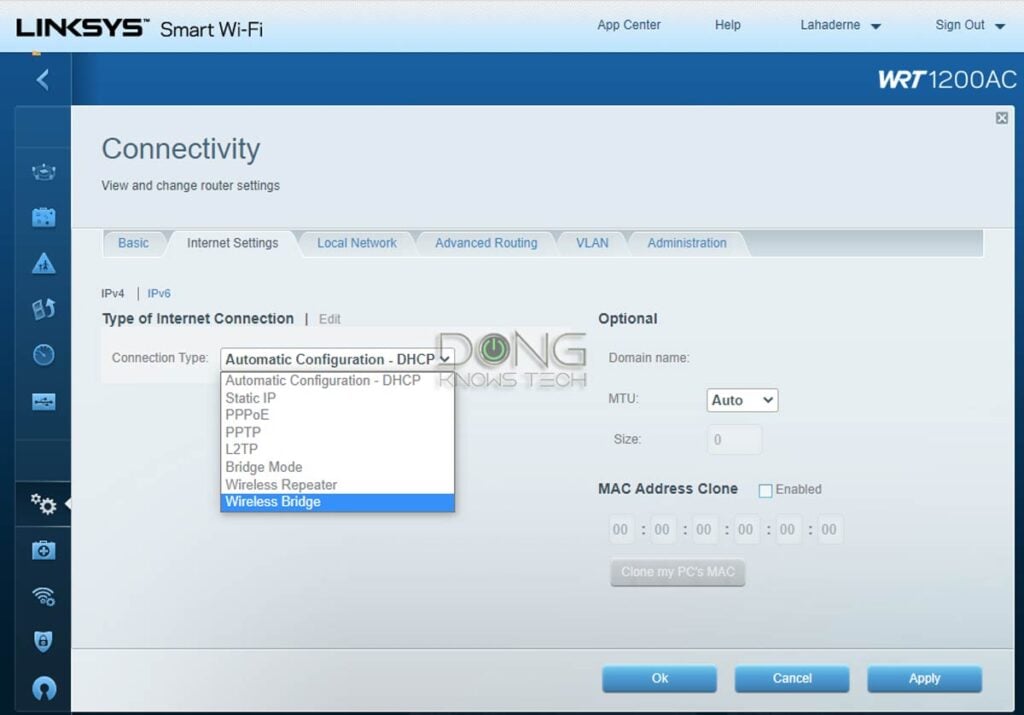

4. Bridge or Media Bridge
Important note: Certain vendors—those that use "Bridge" to call the "Access Point" role as mentioned above—name this mode "Wireless Bridge." There might be other arbitrary names for this role.
In this mode, the router works essentially as a Wi-Fi-to-Ethernet adapter.
Specifically, you use one of its bands to connect to an existing Wi-Fi network. Now, you can connect wired devices to the router's LAN ports to make them part of the network. (In most cases, you should leave the WAN port alone, but some routers turn this port into another LAN.)
In the Media Bridge mode, the rest of the router's Wi-Fi bands are unavailable.
Extra: Bridge mode in a gateway unit
The bridge mode is a bit different in a gateway unit, which is a router + modem combo box.
That's when the gateway will work solely as a modem and no longer has any router-related function.
You can read more about how to get the most out of ISP-supplied equipment in this post.

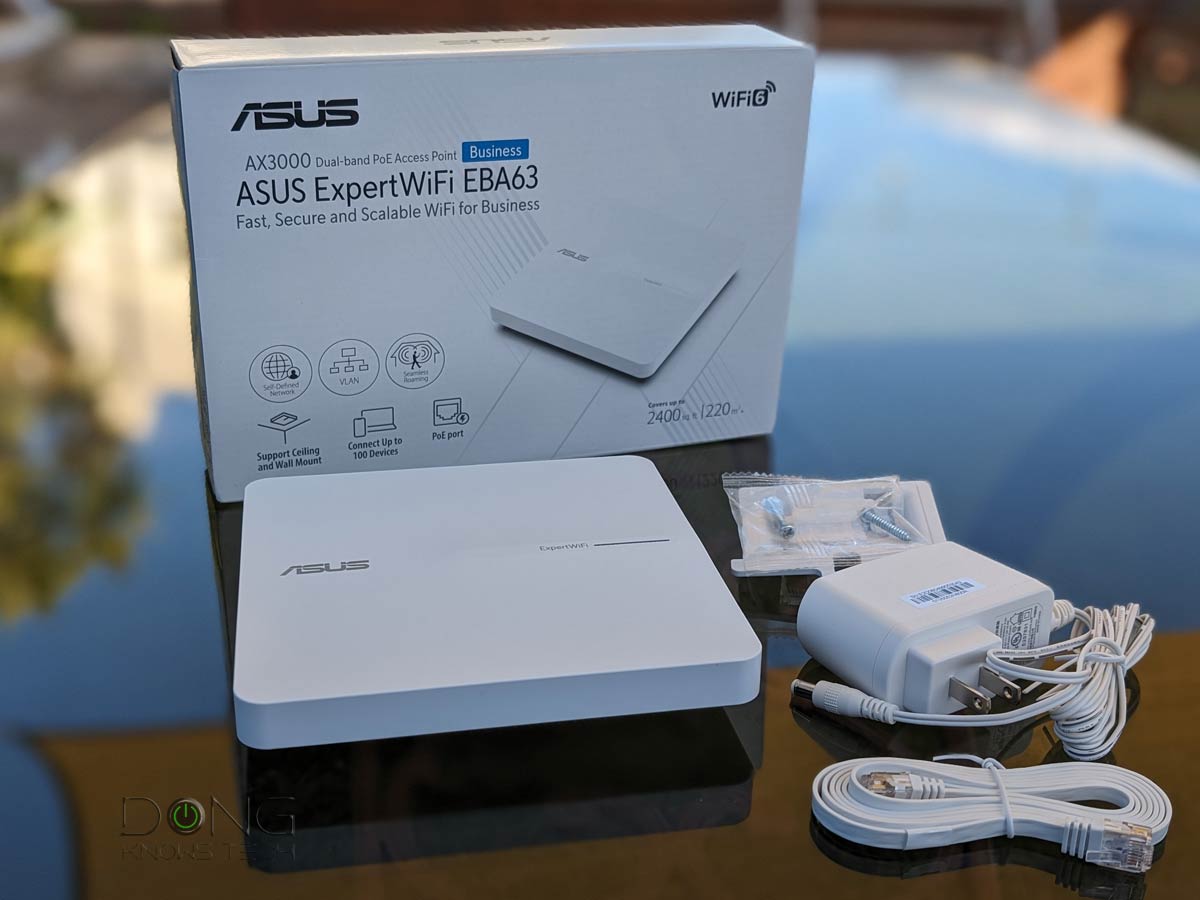

This post discusses standalone access points, which can be used to add Wi-Fi to an existing network. That brings us to the first question: When do access points make sense?
When should you use an access point(s)
The first requirement before you can use an access point is wiring. You must run a network cable from the AP to your existing router or switch. Or let me put it this way: get your home wired so you can use a Wi-Fi broadcaster with wired backhauling. Running wires is the best way to build a robust Wi-Fi network. Often, only a single wire is needed and will make a huge difference.
After that, access points are applicable when:
- you have a non-Wi-Fi router, such as the UDM-SE, and want to add Wi-Fi. (You can also disable the Wi-Fi function of a Wi-Fi router to render it non-Wi-Fi or use its Wi-Fi network for a different purpose, such as extending the coverage, creating a Guest network, or building a separate network for IoT devices.)
- your router has dated Wi-Fi standards. In this case, you can use an AP to upgrade your Wi-Fi network.
- you want to extend the Wi-Fi coverage via a network cable to that far area, such as a large yard, a detached garage, or an outhouse.
- you want to build a robust enterprise-class Wi-Fi mesh system
No matter the scenario, APs allow for flexibility—you place one in an area where Wi-Fi is needed. On the other hand, using a Wi-Fi router means you need to place the Wi-Fi broadcaster where the Internet enters your home, which is often not ideal.
And that brings us to the second question: How do I pick the correct AP for my need?

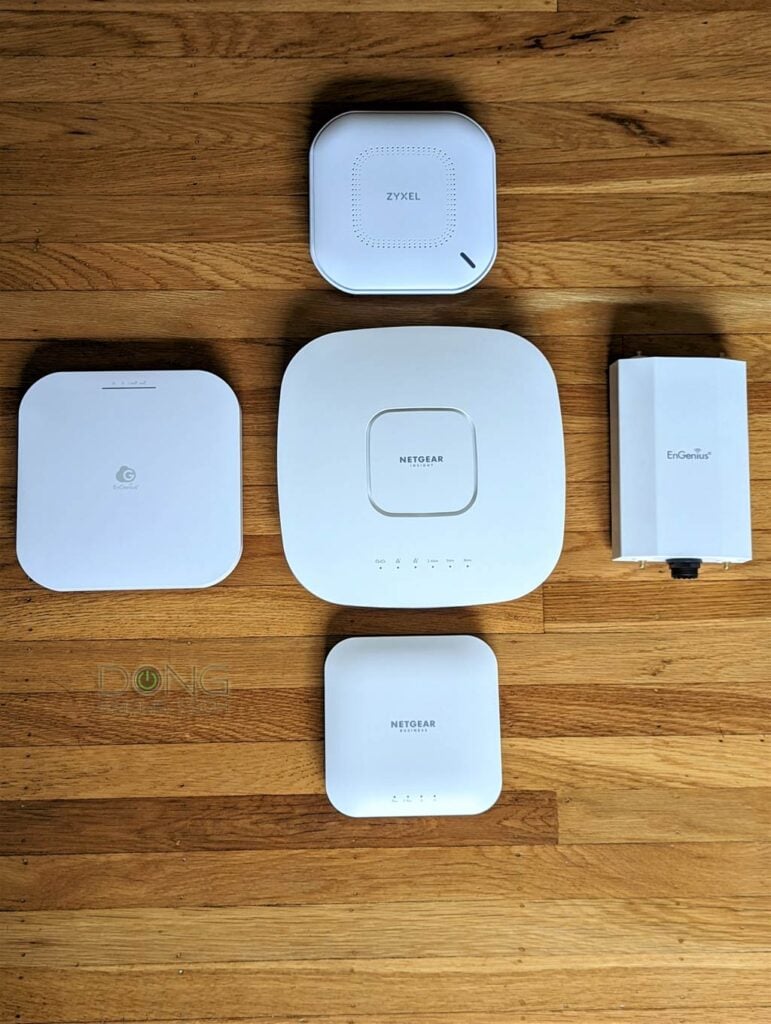

Tips on picking access points
How you arrange access points is the same as how you do a mesh system with wired backhauling—each satellite unit is, in fact, an access point. There are two things to keep in mind, depending on how much coverage you need.
1. The number of units
In most homes, you'd need just one access point. And that's easy: pick one of the Wi-Fi grades and features you want.
Generally, a standalone access point requires you to manage it individually, which is not a huge deal with a single unit—you have only one Wi-Fi network anyway. In this case, you generally want an AP that can be managed locally (instead of a vendor-assisted web portal and a required login account.)
On the other hand, if you need multiple units to blanket the desired area, it's best to get those that can work together—essentially a Wi-Fi system—so that you still have a single Wi-Fi network. Managing multiple individual access points can be a pain, and many of them—especially those from different vendors—don't work well together.
So, when multiple APs are necessary, it's best to get access points that belong to a managed ecosystem, such as FIT of EnGenius, Omada of TP-Link, or UniFi of Ubiquiti. That's generally how an enterprise-class Wi-Fi network is built, by the way.
There are other options, but the ones mentioned above are excellent since, among other things, they don't require an ongoing subscription. The access points can also work as a standalone broadcaster with a local web user interface.
2. Power-over-Ethernet vs. power adapter

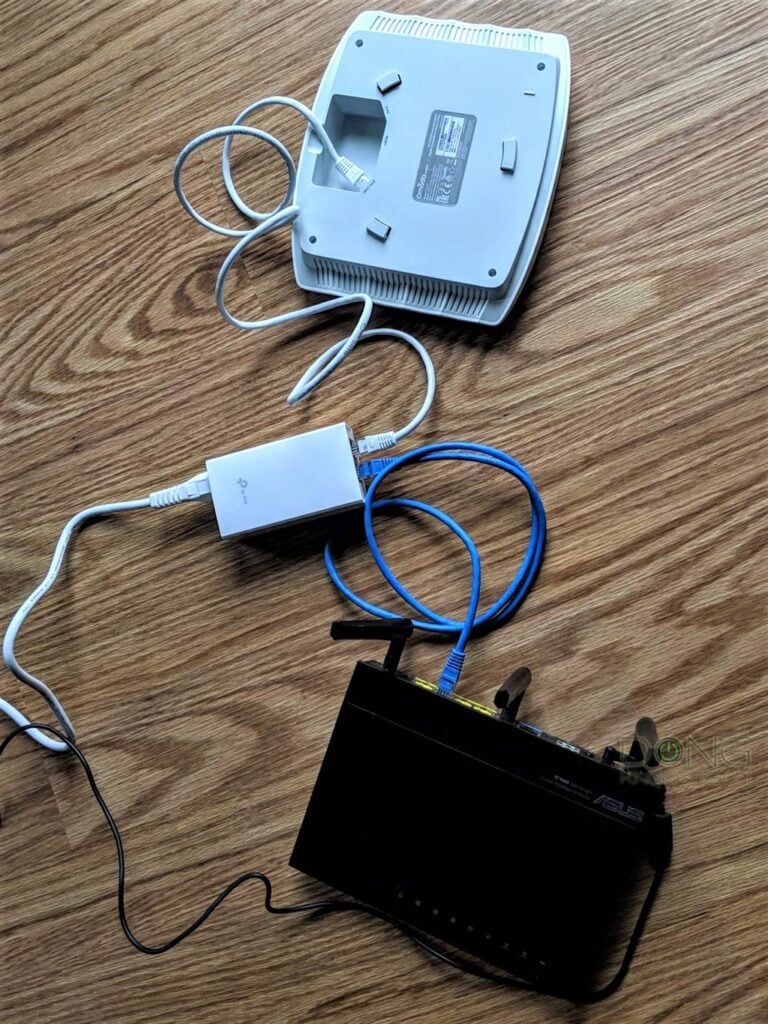

The second thing to note about getting APs is Power-over-Ethernet. As detailed in this post on PoE, this feature allows you to use the network cable to handle data signal and power to the supported access point.
PoE is perfect when you need to place an AP at a location without an electrical outlet, such as an outdoor location—in the middle of a large yard—or an attic. But if you intend to use an AP near a power outlet, PoE is not necessary.

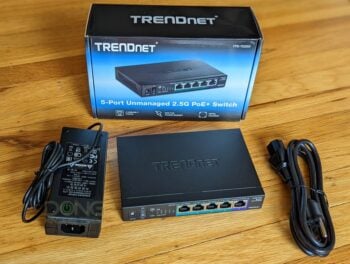

To use PoE, you'll also need a PoE switch (one switch can handle multiple APs) or a PoE injector for each AP. Make sure they use the same PoE standard (PoE, PoE+, or PoE++). Some access points include their own injector, but most don't.
All business-class access points support PoE—most don't even support power adapters. On the other hand, most home access points, which generally also work as extenders, require a separate power adapter and do not support PoE.
Extra: Access points vs. extenders vs. mesh systems
A mesh system consists of multiple Wi-Fi broadcasters (access points or extenders) that work together and can be managed in one place, such as a mobile app or the primary router unit's web user interface.
In a mesh with wireless backhauling, each satellite unit is essentially a centrally managed Wi-Fi extender. In a mesh with wired backhauling, each satellite unit is essentially a centrally managed access point.
The most significant difference between a mesh system and using multiple individually managed broadcasters is that the former gives you better ease of use, low (or no) interference between broadcasters, and seamless handoff, while the latter doesn't.
The final thoughts and the top list
Individually, Wi-Fi access points are excellent ways to build a Wi-Fi network because they all use network cables. When deployed correctly, they can work together as a robust mesh system. You need a router, preferably a non-Wi-Fi router, before using APs. This router decides all the features of your network—the access points only handle the Wi-Fi portion.
Ready to make the move? Below is the rating table of my top picks for the best access points you can safely bring home today.
