If you've never heard of the AsusWRT-Merlin firmware, know that extra magic can be available to a select group of Asus routers. Extra from what, though, you might ask? From the stock firmware, called AsusWRT.
However, things are not as simple as one is better than the other, which is especially true considering the latest AsusWRT 5.0.
This post will inform you about the software that powers Asus home (Wi-Fi) routers and which one to use to, when applicable, sprinkle some magic on your beloved networking device.
It's important to note, though, that manually installing (third-party) firmware on a router can be tricky and could render your router a paperweight when not done right. Consider yourself warned! If something happens, you're on your own.
The general rule of tinkering is that if you want to venture outside the general tech norm, out of boredom or otherwise, tread lightly! With that out of the way, let's start with what "firmware" is.
Dong's note: I first published this piece on October 21, 2020, and updated it on May 19, 2024, to add relevant and up-to-date information.
What is firmware?
Firmware is like a mini operating system. Every tech gadget or electronics has to run on a piece of software. So, firmware for a router is like Windows for a computer. It decides how (well) the router functions and dictates what you can do with it.
However, firmware can be very different from an operating system.
Firmware vs. operating system
Both firmware and operating systems are software that manipulates the hardware to deliver specific results. But they differ in nuances.
Specifically, the firmware has low-level—more direct and crude—access to the hardware. It's geeky and closely related to a device's physical components.
On the other hand, an operating system has higher, safer, and more refined access to the hardware. It's user-friendly and about giving users what they want instead of dealing with hardware components' essential functions.
A crude analogy
Firmware is like the wiring and switches under the hood of a car, while the operating system consists of the control element inside the cabin, such as the driving wheel, shiny buttons, stalks, knobs, touchscreens, and whatnot. Most drivers only care about the latter and have no interest in the former, which, among other things, will make their hands dirty.
On a computer, the motherboard itself uses firmware called BIOS, which decides what kind of computer it is and which operating system—Windows, Linux, or macOS, for example—you can install on it and how.
Sometimes, the line between firmware and an operating system is blurred, and the two can be interchangeably used. For example, the firmware of Synology routers is so advanced that folks call them operating systems.
However, devices with limited functions, like the Internet of Things (IoT) gadgets, generally use firmware. Advanced devices, such as smartphones, tablets, or computers, use an operating system (on top of a firmware layer).
So, Wi-Fi routers mainly use firmware, but it's also acceptable to call that an operating system.
Stock firmware
By default, the networking vendor ships their routers with installed firmware, often referred to as "stock firmware," which can't be changed. You may be able to upgrade the firmware to a newer/better version occasionally, but for the most part, the router's features remain the same for the rest of its life.
Asus's stock firmware, AsusWRT, is used in all home routers released in the past decade and the foreseeable future. (WRT stands for Wireless Receiver / Transmitter, a common acronym for Wi-Fi broadcasters.)
It's worth noting that AsusWRT is one of the most robust firmware for Wi-Fi routers. Asus builds it using Linux via the GNU Project, with source code available to the public under GNU's General Public License (GPL). That opens it up to third-party builds, including Merlin.
We'll get to AsusWRT-Merlin momentarily, but first, let's take a deeper dive into AsusWRT itself.
Dissecting the formidable AsusWRT

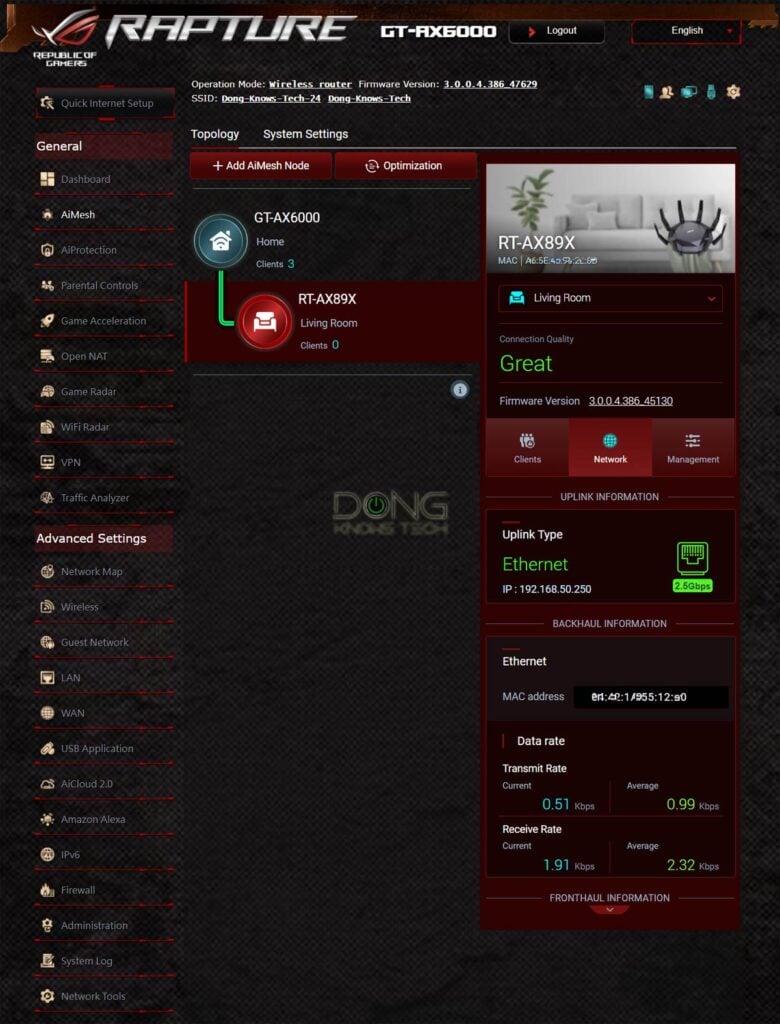

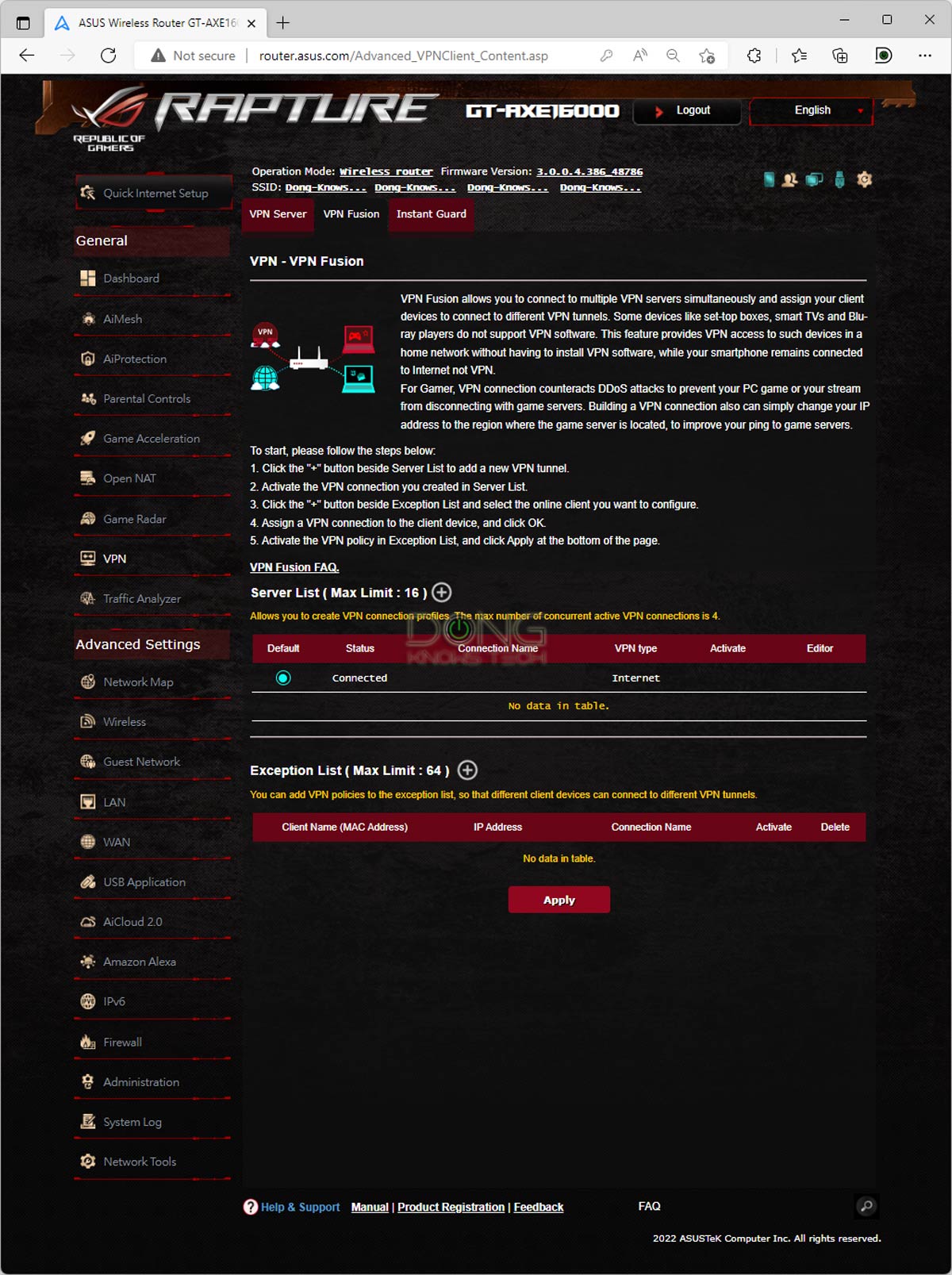

Below is the web user interface of the GT-AX6000 gaming Wi-Fi 6 router running the stock AsusWRT firmware. Asus's gaming line-up generally has a red theme, while the RT series has less flashy colors.

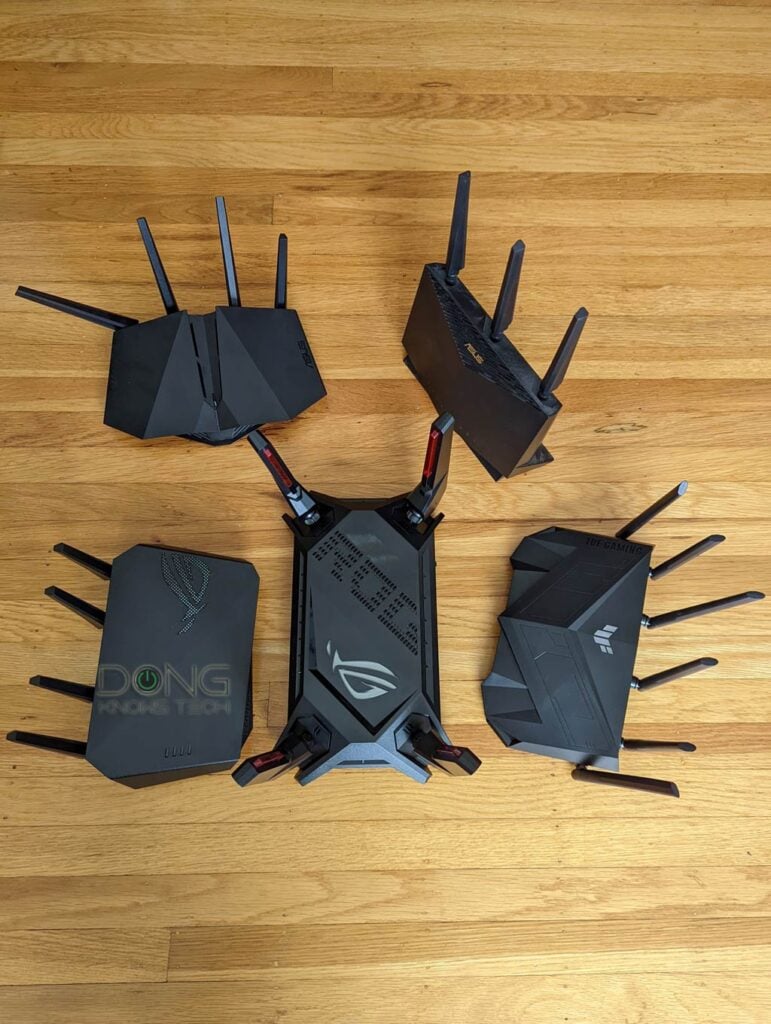

Asus has a vast collection of Wi-Fi hardware options available in the following series:
- The RT series: General consumer-grade standalone routers ranging from entry-level, mid-range, and high-end models. Improved variants might carry the "Pro" suffix, such as the RT-AX88U Pro. Some models include gaming-related features, such as the RT-AX82U. Most feature AiMesh as an option.
- The TUF and ROG series: Gaming-related Wi-Fi routers of different tiers, including the highest-end flagship routers. Improved variants, such as the GT-AX11000 Pro, might carry the "Pro" suffix.
- The ZenWiFi series: This series includes consumer-grade purpose-built AiMesh-based Wi-Fi systems with a broad range of configurations. Some variants have built-in MOCA or Powerline support.
- The ExpertWiFi series: Hardware for networking enthusiasts and office environments. These are AiMesh-enabled business-oriented solutions with more advanced options in network customization and hardware design, available as purpose-built mesh systems, single (Wi-Fi) routers, APs, and switches.
Generally, all AiMesh-enabled hardware—most, if not all, Asus Wi-Fi 6 or newer routers—can work together to form a system.
Regardless of the themes and their decoration, routers sharing the AsusWRT firmware share the same core feature set, which is among the most comprehensive among home routers. If you're interested in what this firmware can do, I detailed that in this primer post on Asus routers.
Here, let's focus on the firmware itself.
AsusWRT has so far gone through five major versions, including:
- AsusWRT 1.0: Available in pre-Wi-Fi 4 routers. It's the initial Asuswrt firmware with the 3.0.0.4 kernel.
- AsusWRT 2.0: Available with Wi-Fi 4 hardware and added support for USB storage.
- AsusWRT 3.0: Available in Wi-Fi 5 and Wi-Fi 6 hardware and added the support for AiMesh starting with version 3.0.0.4.384.xxx.
- AsusWRT 4.0: This version is available primarily in Wi-Fi 6 and 6E hardware, starting with version 3.0.0.04.386.xxx. It added multiple levels of gaming and security. It's the last version with the 3.0.0.4 kernel.
- AsusWRT 5.0: This version was first available in late 2023 in Asus's latest hardware, such as the new ExpertWiFi family and Wi-Fi 7 hardware. It uses the new 3.0.0.6 kernel. Among other improvements, it supports self-defined networks, advanced VPN, Gaming networks, and more.

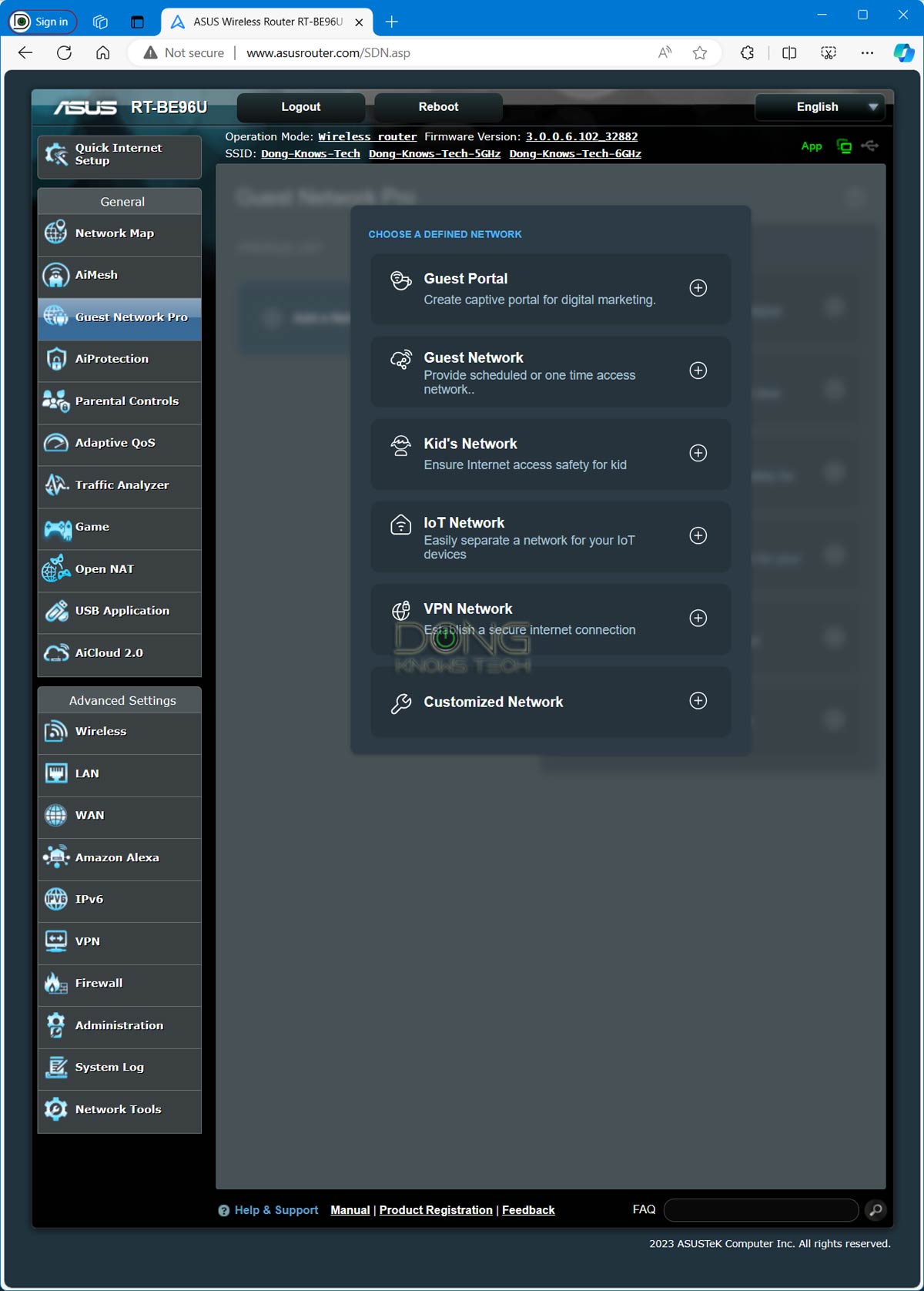

The self-defined network (SDN) feature in AsusWRT 5.0 allows users to create multiple virtual SSIDs that fit different scenarios, such as office space, Guest Wi-Fi, IoT, etc. This feature has different names:
- SDN in Asus's new ExptertWiFi business hardware.
- Guest Network Pro in its ROG gaming and high-end RT models.
- Smart Home Master in the Wi-Fi 7 ZenWiFi lineup.
Understanding a firmware version
Asus regularly releases firmware updates for its routers, which is generally a good thing. Many of these updates add new features to the hardware—they do more than patch security vulnerabilities. However, some updates may inadvertently cause a particular model to go haywire, likely because the company tries to do so much with its routers. That's often the case with a major upgrade.
All AsusWRT firmware releases, the version number of which generally appears at the top of a router's web user interface, share the same format. Let's zoom in on one to find out what it means.
Note: An AsusWRT firmware version that starts with 9.x.x.x instead of 3.x.x.x is a beta release meant for testing purposes only.

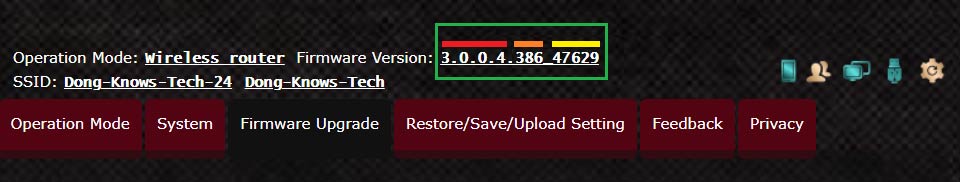

There are three parts in a particular firmware release, such as 3.0.0.4.386_47629 shown above:
- The first four digits (3.0.0.4, as shown with the hovering red line): The Linux kernel version—the super-major release, often referred to as a "branch". It's the base of the firmware and tends to remain for years (often a decade or more) without changing. Generally, when it's changed, it conveys the most significant change in the firmware itself. The 3.0.0.4 kernel has been there since Asus's Wi-Fi 4 routers, such as the 2011 RT-N66U, and didn't change until the release of the company's first Wi-Fi 7 hardware in late 2023.
- The three middle digits (386, orange): Signify major updates by Asus that include significant changes or added features. This generally changes every one or a couple of years.
- The last digit after an underscore (47629, yellow): This is the minor release, which is often used to stabilize the major update or improve security. It changes the most frequently.
Generally, Asus allows firmware upgrades and downgrades on its hardware. In the latter case, you can only install firmware that is as old as the particular hardware's initial release.
Tips on AsusWRT kernel 3.0.0.4
Considering the vast number of hardware options, most of which can be combined into a mesh system using the AiMesh feature, firmware can be tricky for Asus, especially with hardware running firmware versions that start with the 3.0.0.4 kernel.
AiMesh was first added as a major feature via firmware version 384 in early 2018—represented by the RT-AC86U. It was buggy at first, but it became stable with the latest minor updates. In early 2020, Asus released version 386, which was also buggy in the early stages, to add AiMesh 2.0 via the introduction of the ZenWifi product line. By late 2022, version 386 had become fully mature, and Asus released version 388 (dubbed Asuswrt 4.0) to add better VPN support, triple gaming/protection levels, and more. This version became stable by late 2023.
When it comes to updating—especially in an AiMesh setup of mixed hardware units using wireless backhauling—keep the following three items in mind:
- Avoid the initial major release: This is the first firmware version of a model where the middle three digits of the firmware version change, such as from 384 to 386 or from 386 to 388. Generally, things start to be good with the first minor update to a major firmware release.
- Avoid using Auto-Update for firmware: Instead of letting the hardware update itself, you should update the firmware when you see fit. (It's OK to choose Auto-Update for the security-only updates when that's an option.)
- Version consistency (in a mesh system): Generally, it would be best to use the firmware version of the same major release for all AiMesh members. (Mixing hardware of different major releases can produce mixed results.)
On the one hand, moving between major releases might break your AiMesh setup or even your standalone router. On the other hand, new hardware comes with a specific initial version that is out of the box—you have no option to downgrade it—and some old models won't get the latest release. So, depending on the mesh combo, your luck will vary.
As a rule, when using hardware with the 3.0.0.4 kernel in a mesh system, it's best to wait for a few minor updates of a major release before upgrading. Depending on the hardware combo, you might need to rebuild the system from scratch or reset and re-add a satellite node if you change the major firmware version (in one or all hardware units involved.)
The new 3.0.0.6 kernel (AsusWRT 5.0)

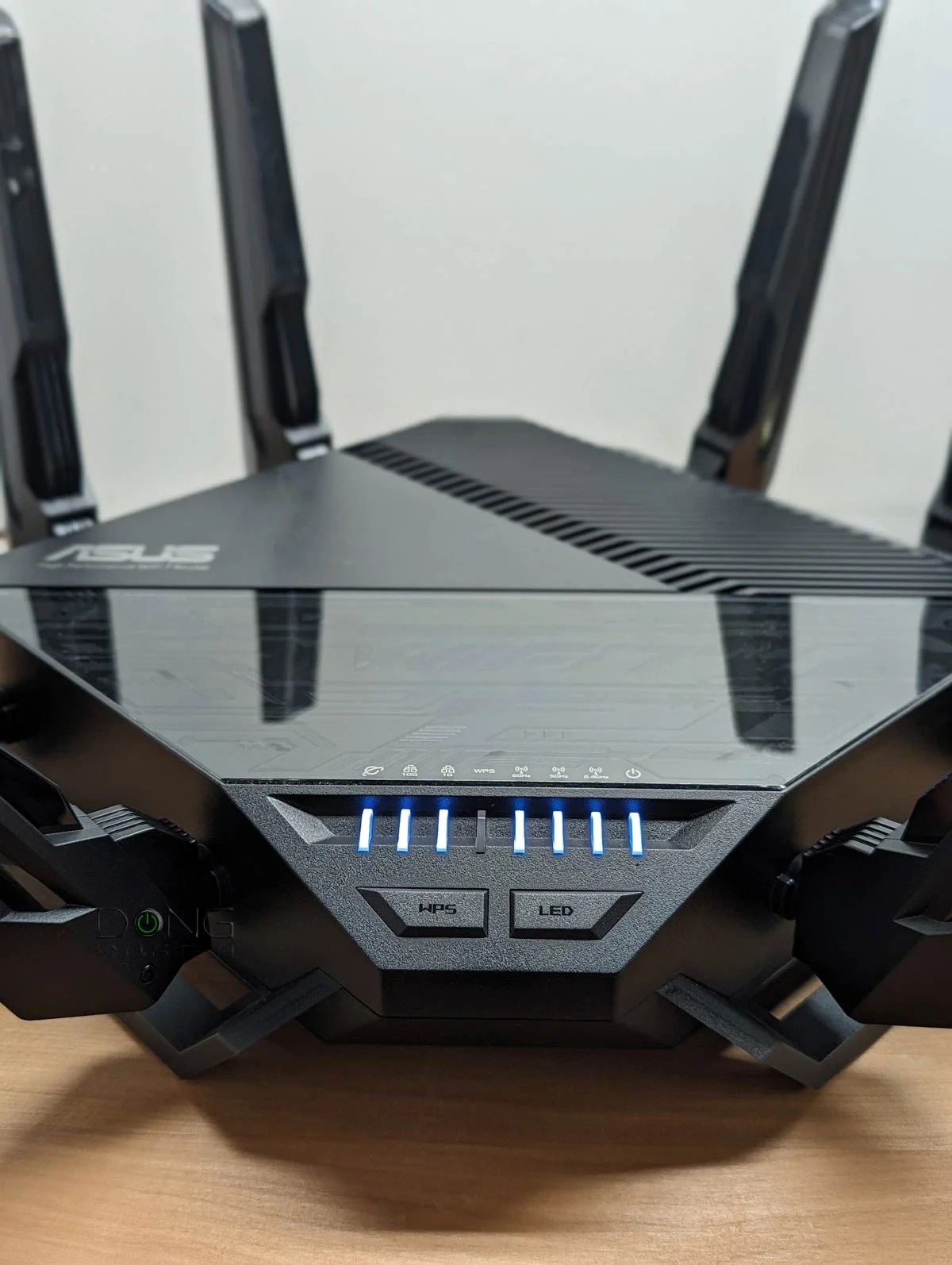

In late 2023, Asus made available its first Wi-Fi 7 router, the RT-BE96U. Together with it, there's a new super-major firmware build running kernel version 3.0.0.6, currently with the 102 major release. It's AsusWRT 5.0 to replace its current AsusWRT 4.0, which is the 388 release of its 3.0.0.4 kernel, as mentioned above.
Subsequently, this kernel is also used for the GT-BE98 Pro and the new ExpertWifi family. It's safe to say all new Asus networking hardware released in 2024 and later, regardless of the Wi-Fi standards or performance grades, will use the 3.0.0.6 kernel. (The newly released RT-AX57 Go travel router has it.)
During 2023, this firmware was available as a beta for some existing hardware originally released with the 3.0.0.4 branch—including RT-AX86U Pro, RT-AX88U Pro, GT-AX11000 Pro, GT-AXE16000, GT-AX6000, ZenWiFi Pro ET12/XT12—which will likely be the ones to get the official version of AsusWRT 5.0 down the line.
The 3.0.0.6 firmware is relatively new, so it's hard to tell. However, so far, it was buggy in 2023. In early 2024, when it was available with official hardware, it proved to be much more stable and provided more refined support for AiMesh. Specifically, mixing hardware of different Wi-Fi standards and firmware versions seems to work better—within the extent of common hardware features and Wi-Fi performance grades.
Additionally, the new firmware has better support for VPN, Parental Controls, and Network Protection, as well as Guest Network Pro, which allows for self-defined networks (SDNs). Depending on the hardware segment, users can create between three and five additional virtual SSIDs to use at the route or the entire mesh system to better segment or manage their home network.
Additionally, the new version continues the universal backup/restore, meaning you can backup the settings of an old Asus router to a file and restore them to a new one. This works on almost all Asus routers with very few exceptions.
It's safe to say that 3.0.0.6 kernel-based AsusWRT will continue to be improved via major and minor releases in the near future as more hardware supporting it becomes available.
For now, this 3.0.0.6 version is still in its early stages, and while all of its builds are available as open source, no third-party firmware creator has yet adopted them. That brings us to AsusWRT-Merlin.
AsusWRT-Merlin: Special third-party firmware for select Asus routers
Some networking vendors allow users to put third-party firmware on their hardware. Popular open-source router firmware like DD-WRT can work on (select) routers from multiple networking vendors. They tend to be completely different from the stock firmware and, therefore, quite hard to handle.
On the other hand, Merlin is the third-party firmware available only to certain Asus routers. Its official name is AsusWRT-Merlin, though some might call it MerlinWRT. You can also call it Merlin for short. Merlin itself is open-source software.
The Merlin group, led by Eric Sauvagea, alters the AsusWRT source code based on the open-source license to create a (better) alternative and make it available for free. In other words, Merlin is based on the stock firmware and, therefore, always becomes available, if at all, (long) after a router's release.
Generally, AsusWRT-Merlin has all the settings and features of Asuswrt and then some more. In other words, it encompasses the stock firmware as an enhanced version of the same major build. That's been the case with the 3.0.0.4 kernel, currently at 388 release. For now, there's no word yet on when or if the 3.0.0.6 kernel will be ported to Merlin.
So similar to the stock in functions and interface, Merlin is as easy (or hard, depending on who you ask) to use as AsusWRT. If you know one, you can handle the other. And that's a good thing.
The list of Asus routers that can run Merlin
Here is the list of current Asus routers that you can put Merlin on at publication time—there's no Wi-Fi 7 router yet. Follow the links to read their reviews.
- Wi-Fi 5 routers:
- RT-AC66U_B1 (use the RT-AC68U firmware)
- RT-AC68U, RT-AC68P, RT-AC68UF (including HW revision C1 and E1)
- RT-AC68U V3 (use the RT-AC68U firmware)
- RT-AC68U V4 (use the RT-AC68U firmware)
- RT-AC1900 & RT-AC1900P (use the RT-AC68U firmware)
- RT-AC88U
- RT-AC3100
- RT-AC5300
- RT-AC86U
- RT-AC2900 (use the RT-AC86U firmware)
- GT-AC2900
- Wi-Fi 6 routers:
- Wi-Fi 6E routers:
Some old routers, including the RT-N16, RT-N66U, RT-AC66U, RT-AC56U, RT-AC87U, and RT-AC3200, are no longer supported and will not receive Merlin firmware updates.
While not all Asus routers get the Merlin treatment, most of those featuring Wi-Fi 6 and 6E do, and there might be even more in the future. In my experience, Merlin has worked exceptionally well on supported hardware.
Merlin firmware’s features
Here's the complete list of Merlin's features, but the shortlist of benefits includes:

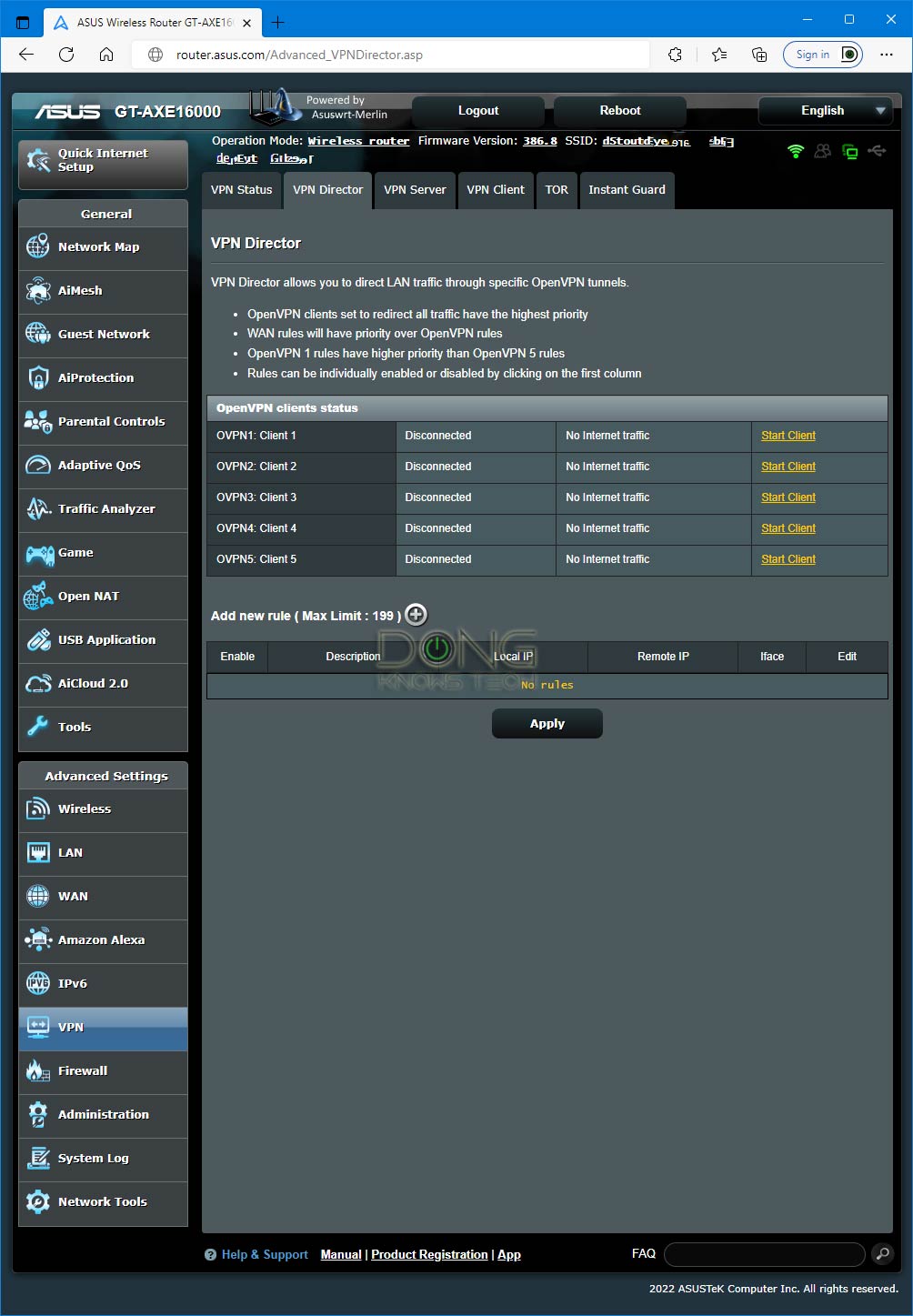

- Better VPN support, which, among other things, can route specific clients via VPN or globally.
- More flexible DNS—you can set the DNS server for individual clients or globally.
- Built-in TOR support for privacy, with individual client control, can route specific clients via TOR or globally.
- More frequent firmware updates, especially when it comes to addressing bugs.
- Better stability.
- Lots of control, feature, and automation options via user scripts and add-on packages.
- The same AiMesh support (for the most part).
Notes on moving between AsusWRT stock firmware and Merlin
Generally, AsusWRT and AsusWRT-Merlin are very friendly toward each other. That means:
- You can move a router between these two firmware options at any time. Specifically, you can flash a router from AsusWRT to Merlin, and its settings will remain the same. The other way around, though, only common settings between the two will remain.
- You can restore a router using a settings backup file for either firmware. And, just like stock firmware, you can restore the settings of one router to another. Depending on the routers involved, some settings might not be carried over in this case.
- The Asus Router mobile app (made by Asus) also works with a router running Merlin.
- Overall, Merlin's web interface looks and feels the same as Asus's stock firmware. You might not even notice that you're using Merlin.
- The AiMesh feature is available in Merlin (starting with version 384), and you can use routers of either firmware together—with unexpected hiccups in certain combos.

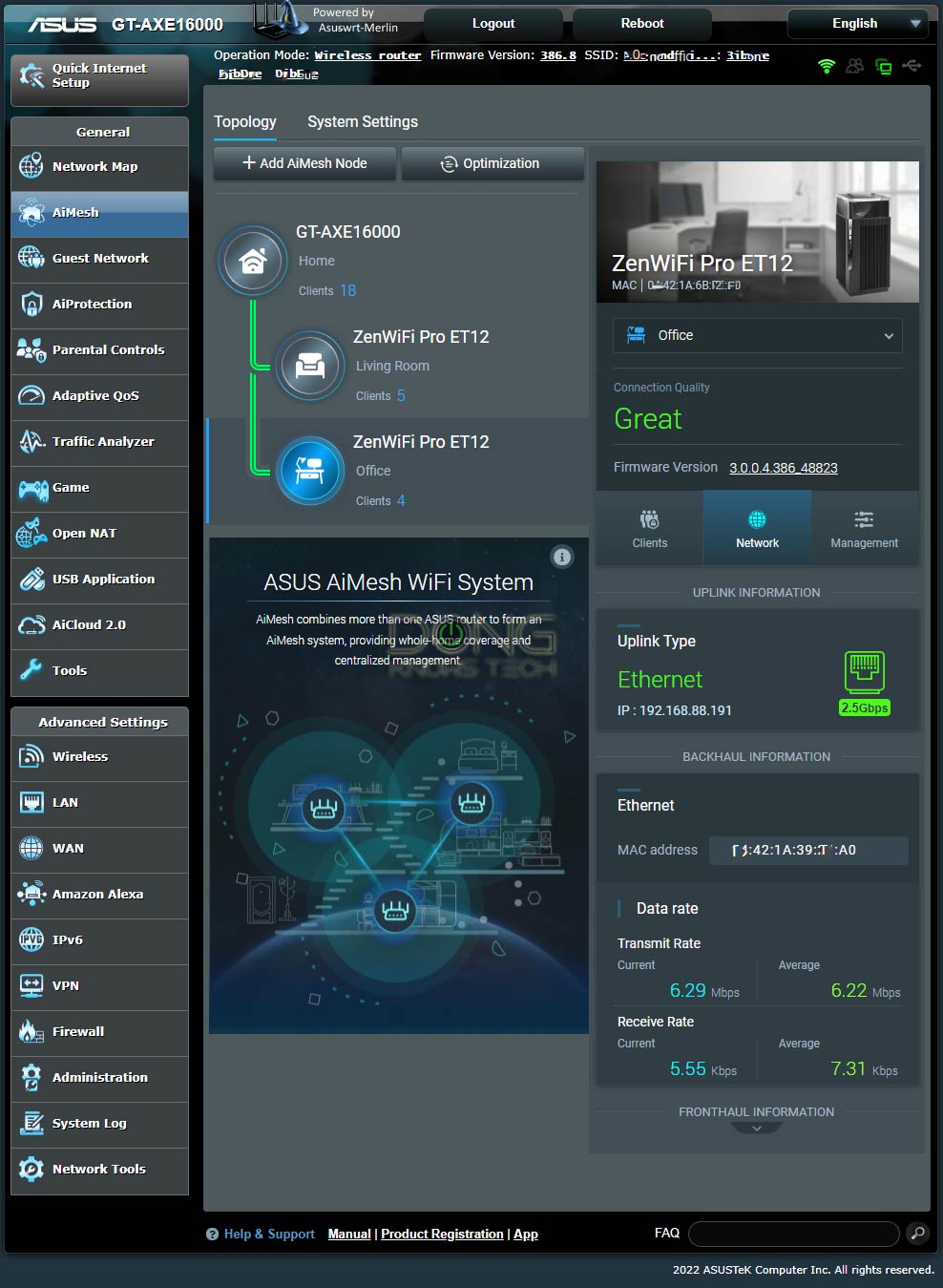

AsusWRT-Merlin firmware and AiMesh
Note that you generally want to use AiMesh with the same firmware (AsusWRT or Merlin). Mixing the two, understandably, might lead to unexpected issues. Also, AiMesh is developed by Asus, so AsusWRT is naturally better and more predictable.
But in my testing, I've used multiple combos where the router unit runs Merlin, the satellites are on AsusWRT, and things are generally fine.
The other way around tends to be hit or miss. Specifically, using an AsusWRT router unit to host a Merlin satellite is not a good idea. But again, your mileage will vary, and generally, it's best to use Merlin consistently when possible.
The performance of a hybrid system proved to be as fast and reliable as when AsusWRT was used across the board.
Still, remember that mixing hardware of different versions, let alone variants, will likely result in unexpected issues. And nobody can test all possible scenarios.
Asus’s take on Merlin
Asus didn't give me any opinion on AsusWRT-Merlin. Instead, it only said it provided AsusWRT's code as an open source under GPL, as mentioned above. However, the company told me one crucial thing: Putting Merlin on Asus hardware will not affect its warranty. Specifically, a Z told me:
"[...] as long as the router does not break/fail during the firmware change process, we will still provide the warranty for the hardware. The 3rd party software is not tested by ASUS, so we do not provide the warranty for the 3rd party software."
In short, using Merlin is risk-free if you don't mess up the firmware migration process or expect tech support from Asus. And that's fair game.
And that brings us to how you can put Merlin on your supported router today. The process is the same as doing a manual firmware upgrade or downgrade.
How to manually flash firmware (AsusWRT or AsusWRT-Merlin) on an Asus router
Installing the AsusWRT-Merlin firmware on a router is the same as manually upgrading the hardware using AsusWRT stock firmware. It's a process called "flashing." And it's easy enough.
All you have to do is download the firmware and load it on the router via its web user interface, just like the firmware update process of any standard router.
The following are detailed steps to manually flash a Merlin or stock firmware file on an Asus router. I used an RT-AC88U unit for the screenshots below, but you can apply these steps to flashing any other model using stock or Merlin. The process is always the same—pick the hardware and firmware of your choice.
1. Download the (Merlin) firmware for your router
Here's the link to get AsusWRT-Merlin for all supported routers. You want to download the latest Release version, though you can also try the beta if it's newer and you want to be adventurous.
If you want to use stock firmware from Asus, Google the router's model plus "firmware," and you'll find the download page for the router from Asus's website. This page generally includes multiple firmware versions, the latest plus a few previous releases, in case you want to downgrade.

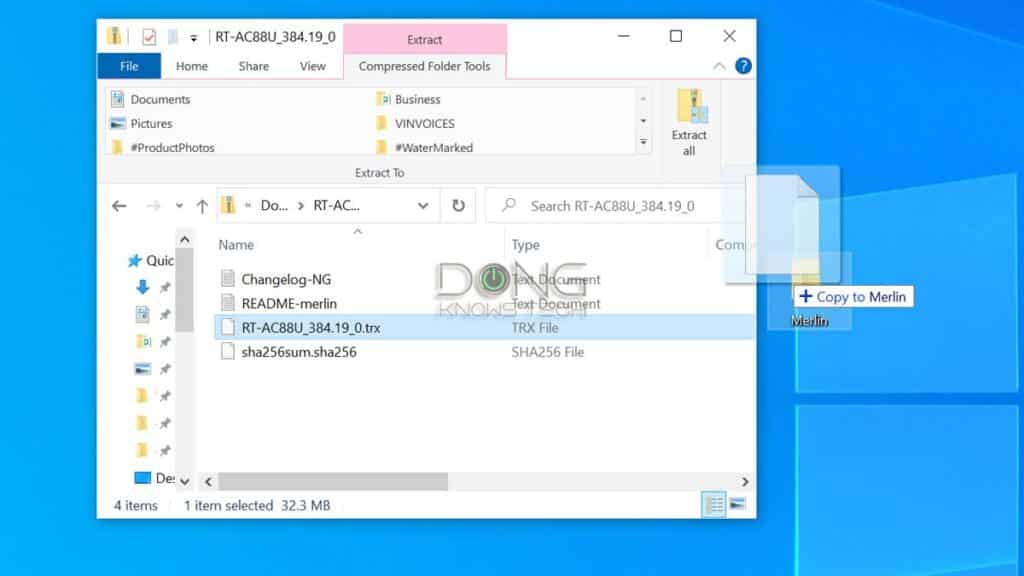

The download file is a compressed folder in .zip format. You first need to open this file (double-click on it) and extract the firmware file. Generally, the file you want is named after the router's model plus the version number.
If there are more than one firmware files, each has a feature, such as the ROG vs. RT theme colors, and you can use any. In any case, if unsure, you can try one file after another in the step 3 below—the system won't accept a non-firmware file.
In my case, I dragged and dropped the file onto a folder called "Merlin" on my Windows computer's desktop area. The point is you need to remember where you put this firmware file.
2. Log in to the router web interface
Log in to the Asus router's web interface from a connected computer. You can do this by navigating a browser from a locally connected computer to its default IP address, 192.168.50.1, or www.asusrouter.com.
You'll be asked for the username ("admin" by default) and password you created when you first set up the router. Once logged in, go to:

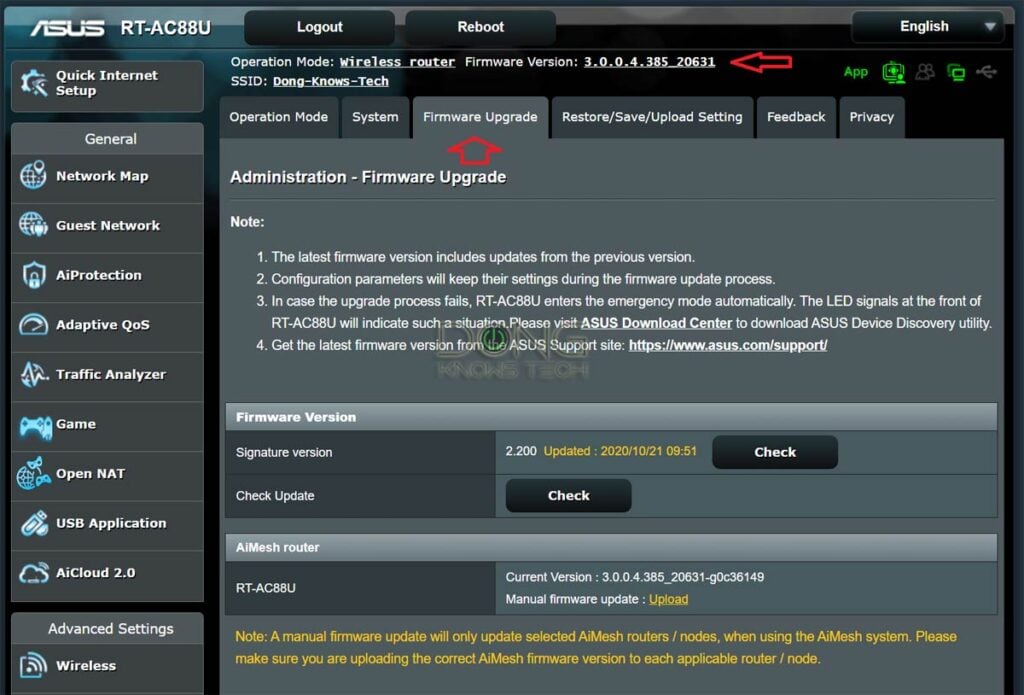

Administration -> Firmware Update
Alternatively, you can click on the firmware version at the top of the interface's webpage to jump to the update section. Now, you're ready to perform the firmware migration in the next step.
3. Upload the (Merlin) firmware

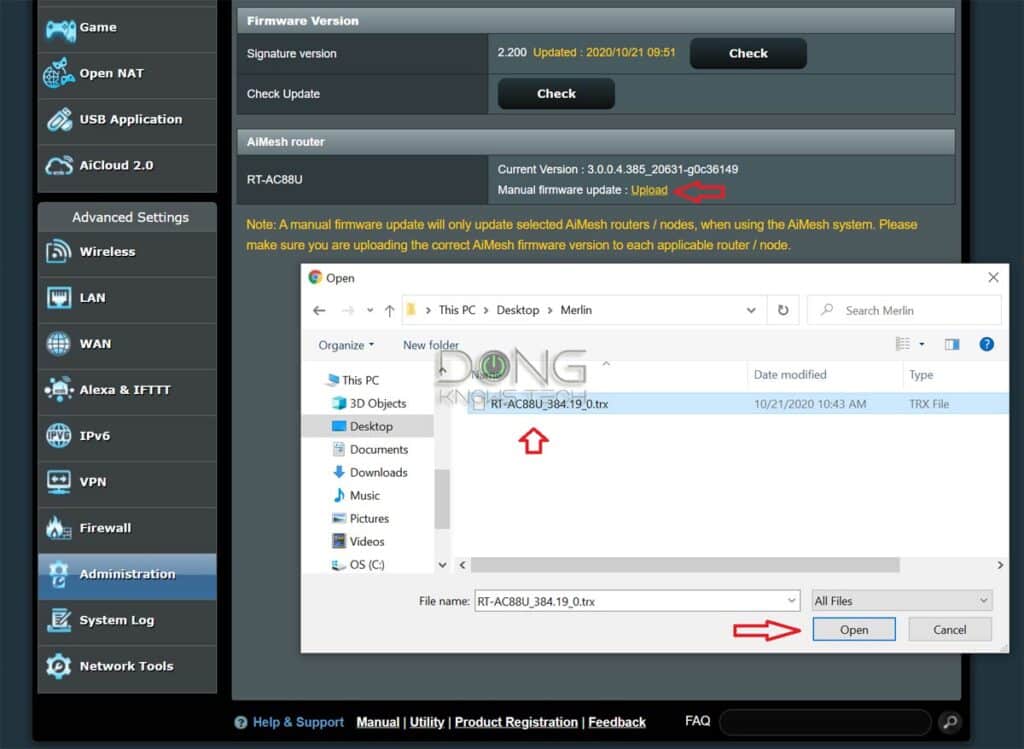

Click on the Upload button (see screenshot below). A dialog will pop up for you to navigate to the location on the computer that holds the firmware file. In my case, it's the "Merlin" folder on the desktop, as mentioned above.
Select the (Merlin) firmware file, then click Open (or double-click on the file). The flash process will start immediately.
Note: This process will take a few minutes. During this time, make sure you leave the router and the web interface alone. Don't unplug the router or the computer from the power!
After that, the router will restart, and the webpage will return to the login page. Log in to the interface again, and, if you have used a Merlin firmware file, you'll see the Merlin logo at the top left corner of the page. You're almost there.
Finally, manually restart the router one more time by unplugging it from power for a few seconds, then plugging it back in. (You can probably skip this step, but in my experience, a manual restart is always helpful after a firmware change. So do it!)
And that's it. Mission accomplished.
If you want to switch back to AsusWRT, repeat the steps above using the router's stock firmware. Again, the settings will (largely) remain.
AsusWRT firmware vs. AsusWRT-Merlin: The takeaway
If you have an Asus router with 3.0.0.4 firmware that can run Merlin, it doesn't hurt to give AsusWRT-Merlin a try. Everyone can benefit from the better stability Merlin brings to an Asus router. Additionally, using Merlin will make the geek inside you happy, if there's one.
I know many advanced users who only buy an Asus router after Merlin is available, and I don't blame them. One thing is almost always the case: If you have a Merlin-supported Asus router that hasn't worked as well as you'd like, putting the third-party firmware on it magically makes it better, and if so, sometimes by a lot. Try it. You can always move back to AsusWRT.
However, Merlin is not a must-use or an upgrade to AsusWRT. Generally, if you choose to use Merlin, you're on your own in support since Asus won't help if you get into trouble. Additionally, hardware featuring the latest 3.0.0.6 kernel version of Asuswrt stock firmware, so far, seems to enjoy similar stability and more features than 3.0.0.4-based Merlin. And you won't need to choose—not yet. For now, it's unclear if there'll be Asuswrt-Merlin for the new kernel.
