The ExpertWiFi EBG15 is an interesting router. Despite having "WiFi" in the name, it's the first in Asus's new ExpertWiFi family not to have built-in Wi-Fi. In return, it's tiny and incorporates a powerful feature set, including VLAN and all things VPN, to earn the full name of Gigabit VPN Wired Router.
If you want to build a Gigabit wired network, this little box packs a bunch. You can also throw in an AiMesh-enabled broadcaster, such as the EBA63 access point, to build a robust mesh system.
While the lack of Multi-Gig ports can be a big downer, at the suggested retail price of merely $89.99—the street price will vary—the ExpertWiFi EBG15 is an excellent buy for those needing a compact Gigabit router.
Asus ExpertWiFi EBG15: A compact yet powerful non-WiFi router
The EBG15 is practically Asus's first ExpertWiFi router, the EBR63, without the Wi-Fi portion. Sharing the newly-released 3.0.0.6 firmware, the two share the same web user interface and rich feature set.
However, the EBG15 is unique: It's the first to handle multi-WAN. Specifically, it can host up to four Internet connections or double a dual-WAN router in two groups to simultaneously deliver faster broadband speed and high availability.
But that's also where it falls short: It doesn't have a Mult-Gig port. Consequently, there's no way to truly take advantage of the increased WAN bandwidth. Chances are, if you indeed have more than one WAN connection, you'd opt for a multi-Gigabit router anyway.
That's to say, the new router is somewhat limited in bandwidth and can't compete with other non-WiFi routers with higher throughput, such as the UDM-SE. But considering EBG15's palm-size design, there's no comparison—the UDM-SE is a gigantic piece of hardware.

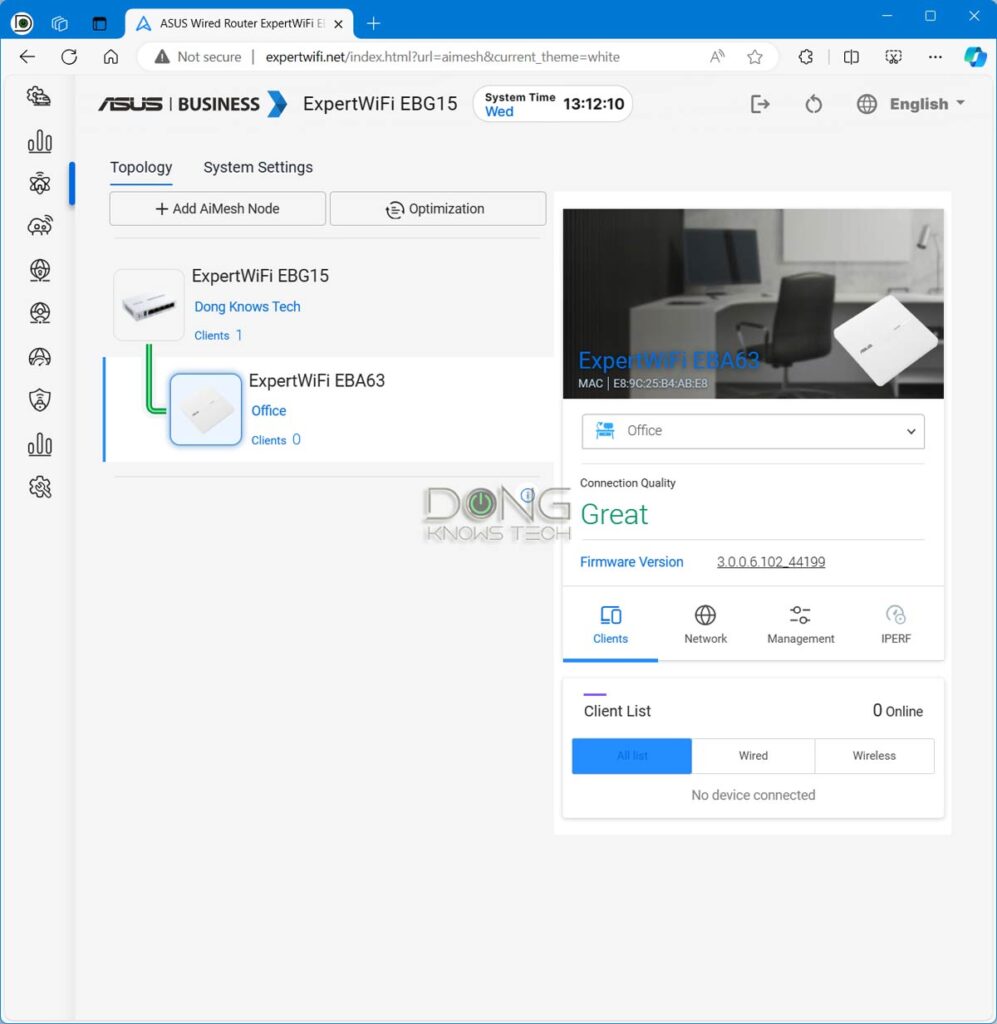

Like the rest of the ExpertWiFi or any AiMesh-enabled router, the EBG15 router can work as the primary unit of a mesh system to host any AiMesh-enabled broadcasters as satellites. For now, it seems it's made to work side by side with the EBA63, which is the first and, so far, only Asus PoE+ access point in the ExpertWiFi family.
In a way, the EBG15 is more of a demonstration of what an ExpertWiFi router can do—and it can do a lot. The table below shows its hardware specs and its features.

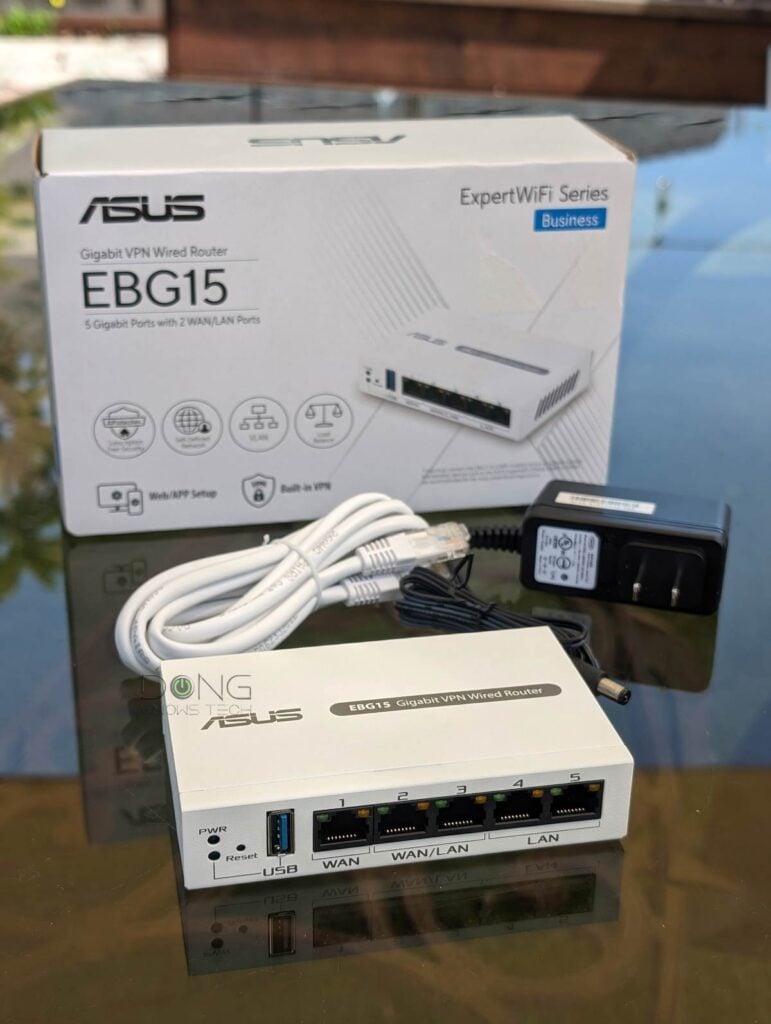

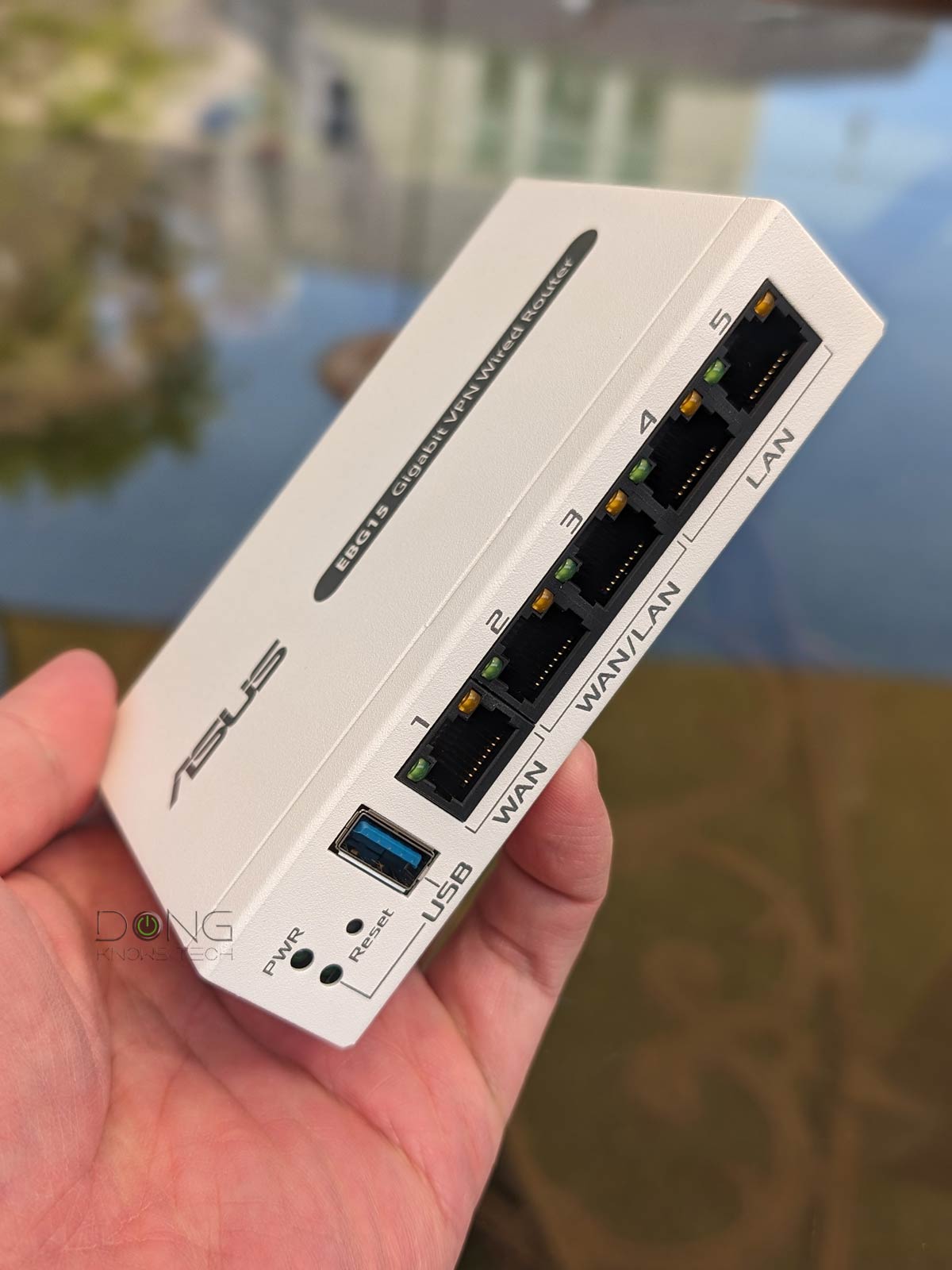

The router's first three network ports can all function as WAN simultaneously—ports 2 and 3 can also work as LANs by default. Its USB 3.0 port can host another WAN connection via a cellular modem/ smartphone tethering or a storage device.
Asus ExpertWiFi EBG15: Hardware specifications
| ASUS ExpertWiFi EBG15 VPN wired router | ||
|---|---|---|
| Model | EBG15 | |
| Dimensions | 4.76 x 2.95 x 1.02 in (121 x 75 x 26 mm) | |
| Weight | 8.82 oz (250g) | |
| Wi-Fi Bandwidth | None | |
| Self-Defined Network | • Employee • Guest Portal • Guest Network • Scheduled Network • IoT Network • VPN Network • Maximum Self-Defined Network Rule:16 VLAN Bandwidth Limiter AP isolate DNS Server Connection | |
| Security | AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN Let's Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter:64 • Maximum Firewall Network Service Filter:32 • Maximum Firewall URL Filter: 64 | |
| VPN | VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark | |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor Traffic Analyzer • Website History | |
| Mobile App | Asus ExpertWiFi | |
| Web User Interface | Yes | |
| Available Operating Mode | Router/AiMesh router AiMesh Node (wired) | |
| Gigabit Port | 1x WAN 2x LAN/WAN 2x LAN | |
| Multi-Gig Port | None | |
| PoE Port | None | |
| USB Port | 1x USB 3.0 | |
| USB Applications | 4G / 5G Auto Mobile Tethering Safely Remove Disk Media Server Samba Server FTP Server Shared Folder Privileges | |

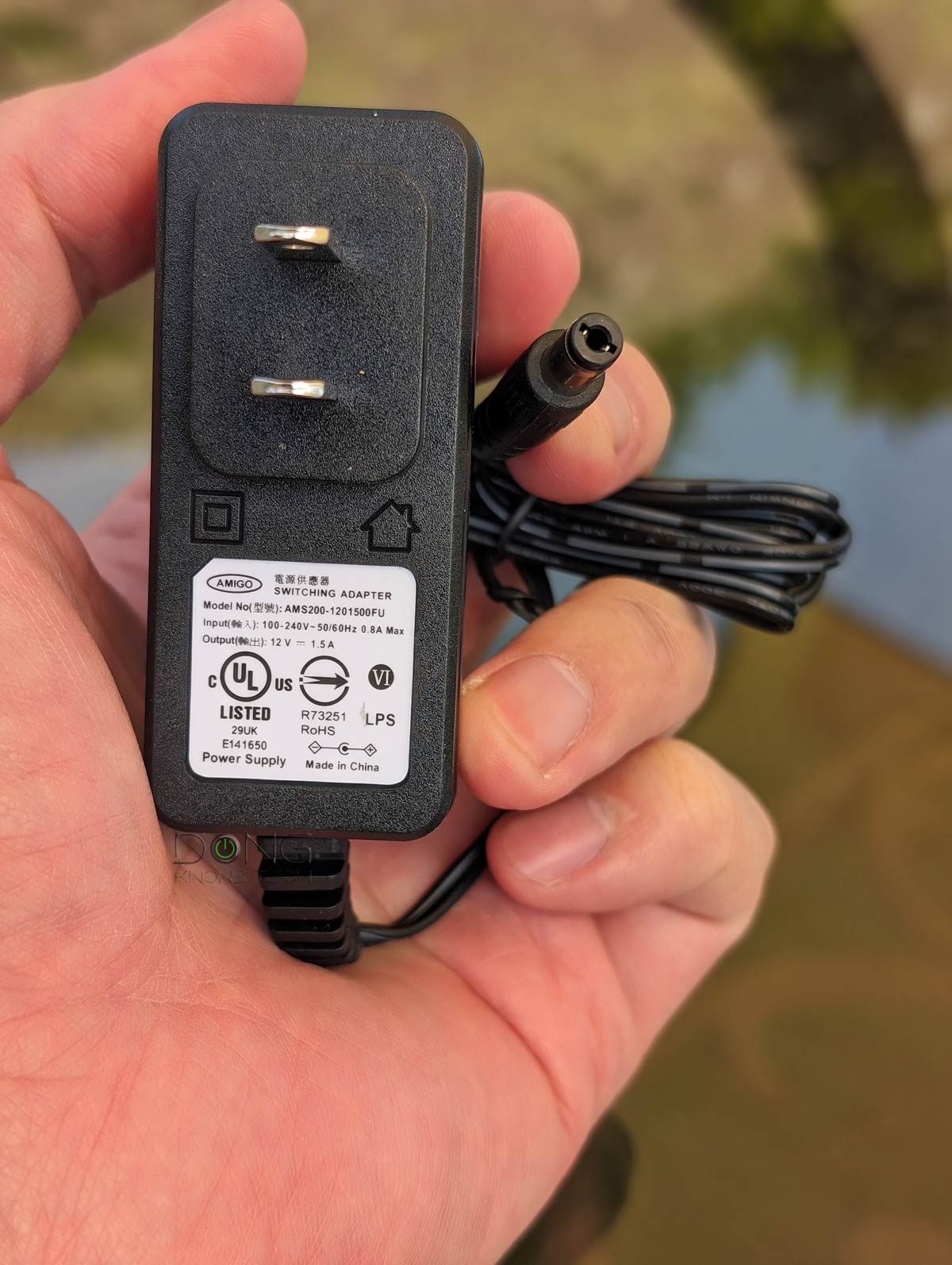

| Power | AC Input: 110V~240V (50~60Hz) DC Output: 12 V with max. 1.5 A current | |
| Firmware Version (at review) | 3.0.0.6.102_44136 | |
| Energy Consumption (per 24 hours) | ≈110 Wh (as tested) | |
| Release Date | February 2023 | |
| Price (at Launch) | $99.99 | |

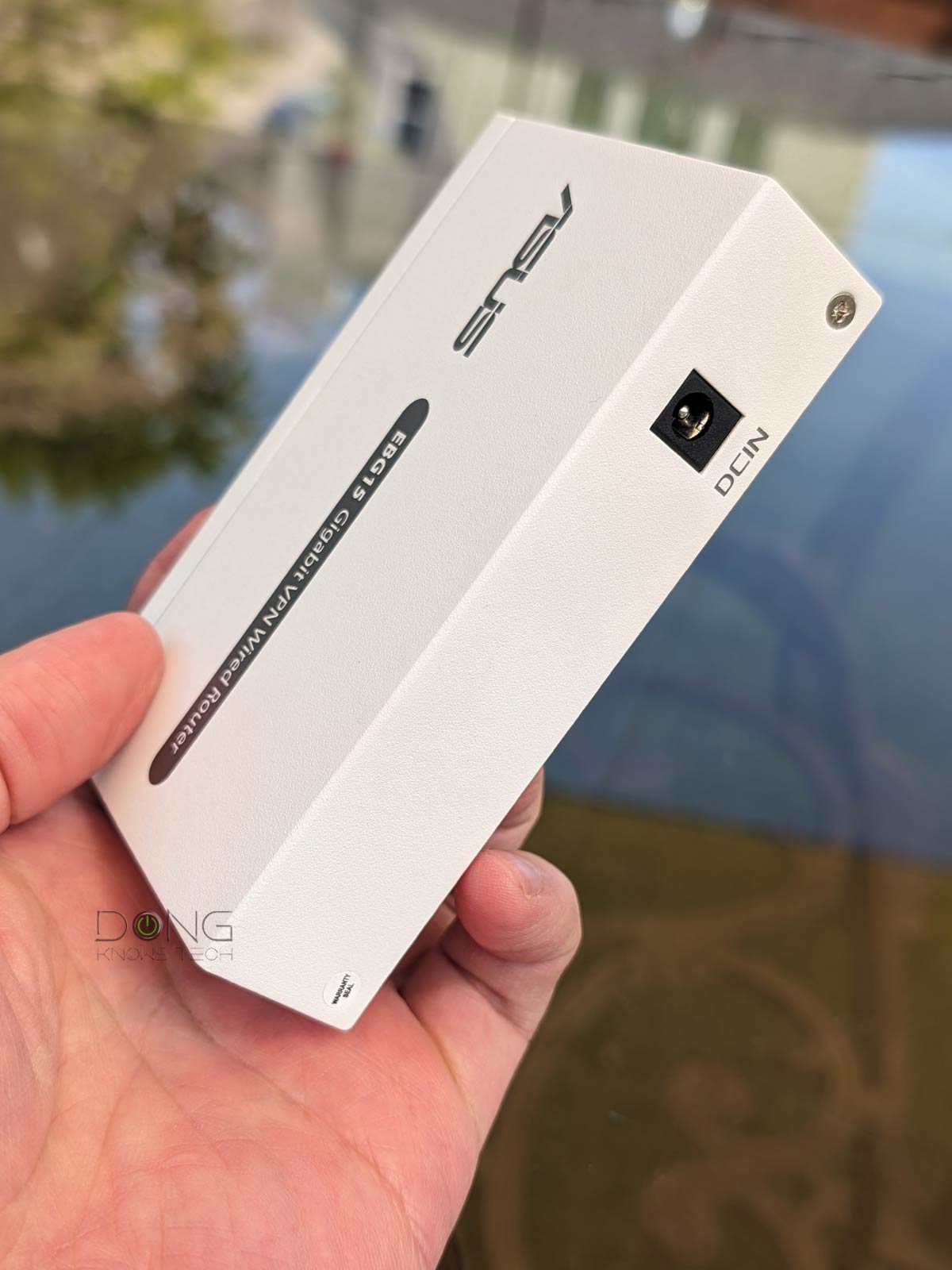

Asus ExpertWiFi EBG15: Single SSID, no PoE port
As shown in the table above, the EBG15 does not have a PoE port. That said, if you want to add Wi-Fi to your network using a PoE access point, you'll need to get a PoE switch. Either that or you'll need an access point with a power adapter. And it just happens that both Asus's current Wi-Fi 6 access points of the same hardware specs, the EBA63 mentioned above, and the RP-AX58U, include a power adapter.

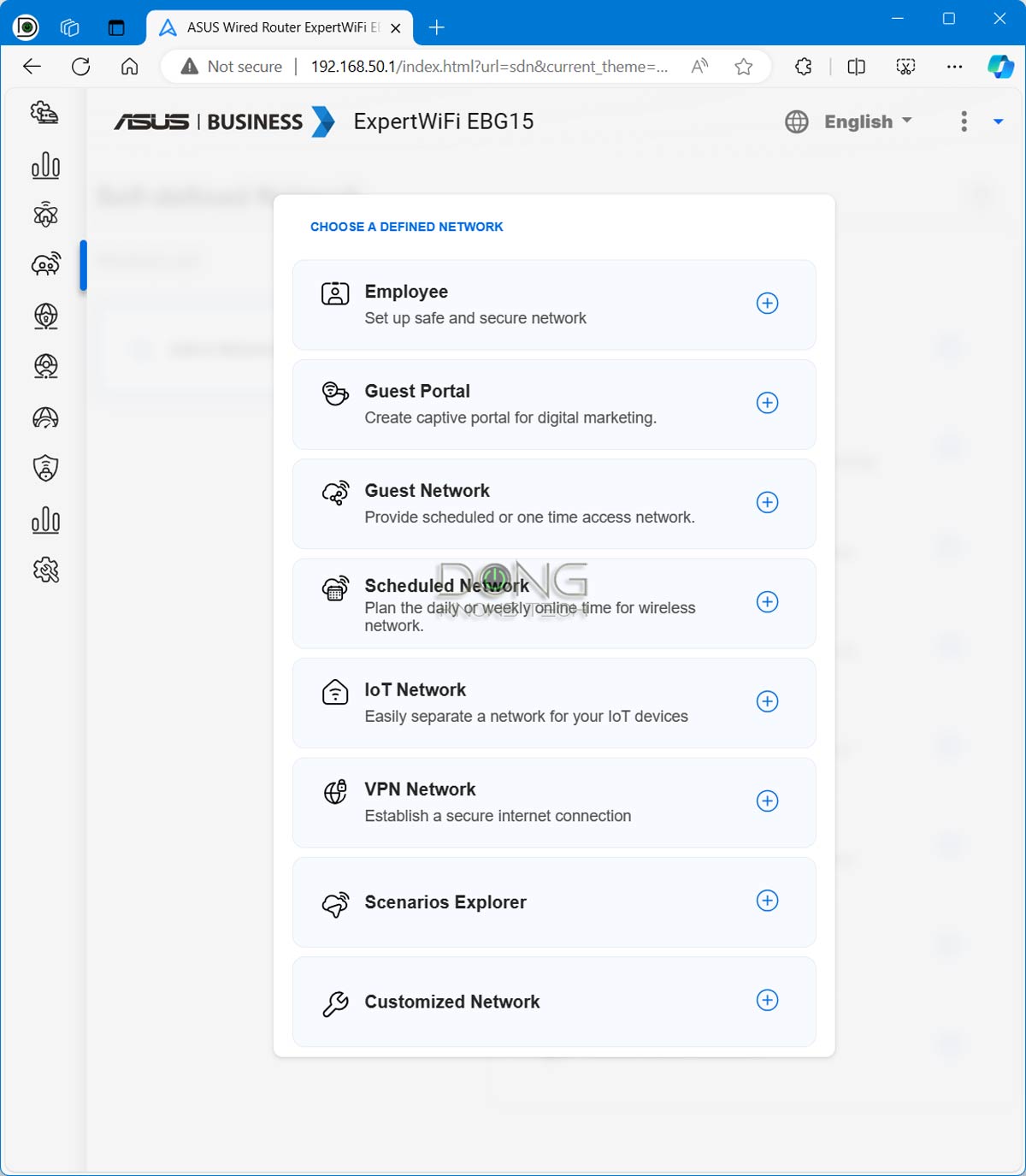

What's really missing, however, is the fact that the EBG15 allows for only one SSID for the main network. Specifically, you can't create one SSID per band. This is likely because the router itself has no built-in Wi-Fi, and managing different bands of add-on APs can be complicated. Nonetheless, it has the support for Software-Defined Network support, a.k.a Guest Network Pro, where users can create up to half a dozen additional scenario-based SSIDs.

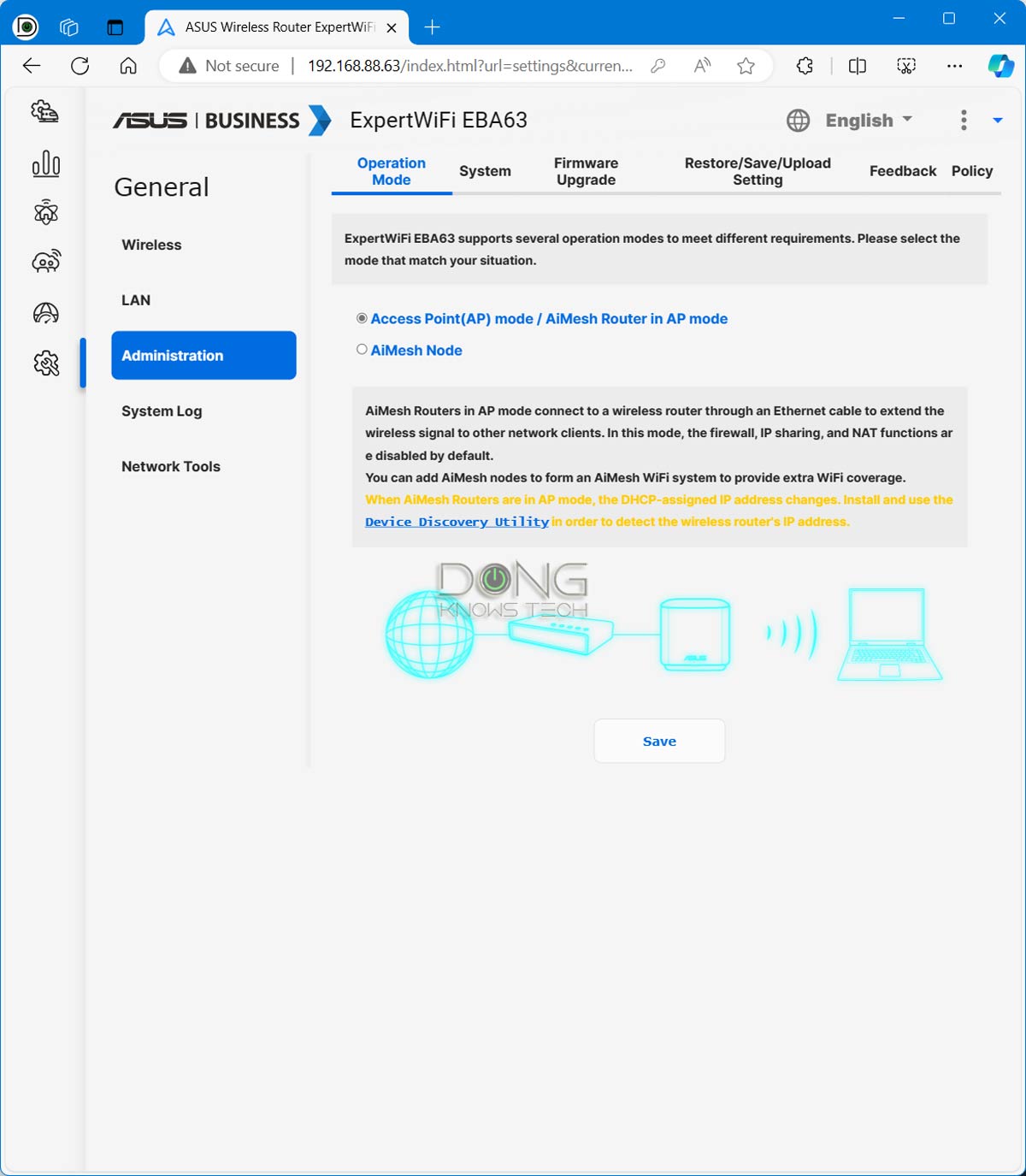

Features via screenshots

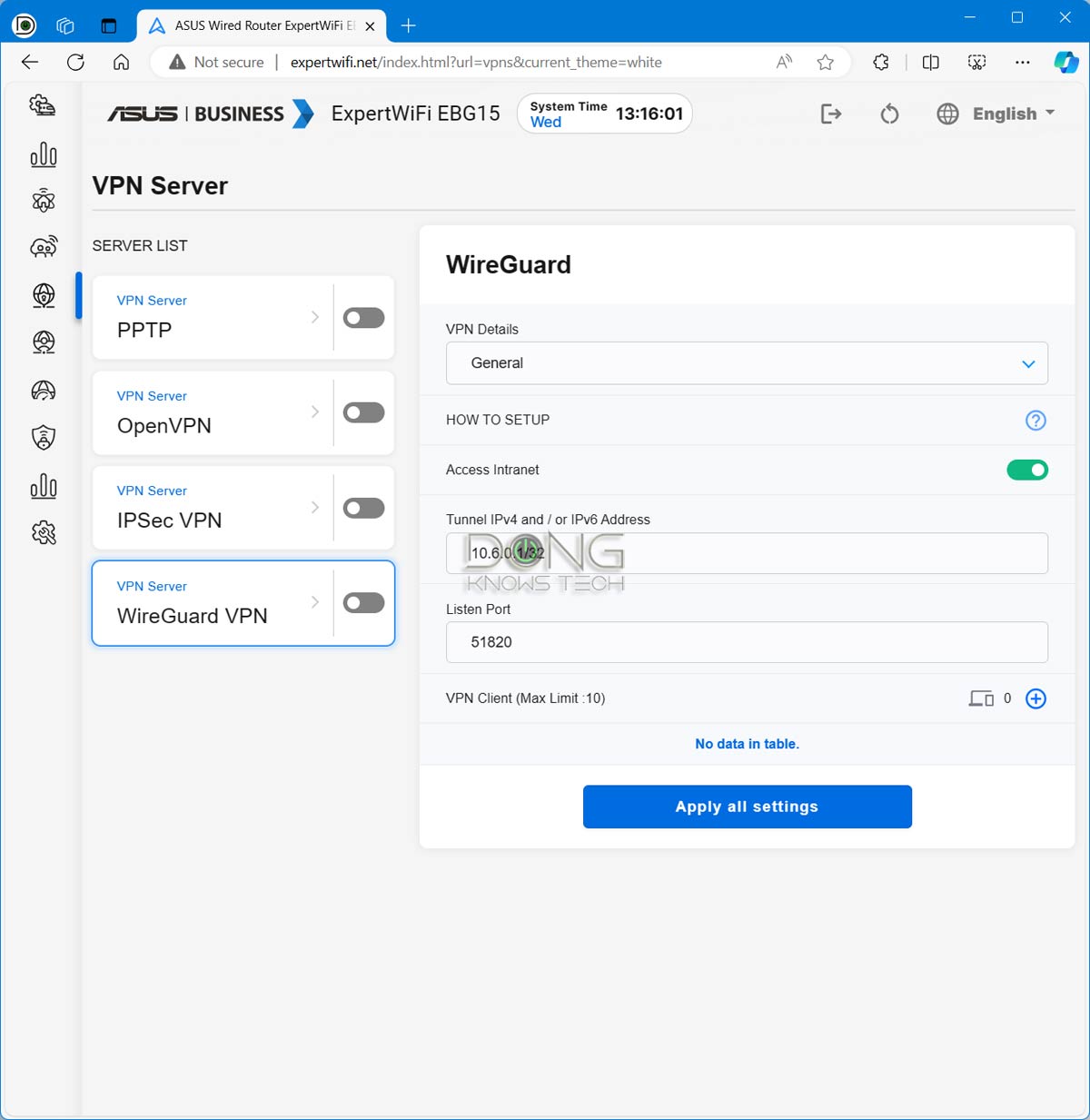

Like the rest of the ExpertWiFi family, the EBG15 comes with a robust web user interface and the optional Asus ExpertWiFi mobile app to manage its incredibly rich feature sets. The screenshots below will run you through some major features.
Asus ExpertWiFi EBG15: Excellent performance

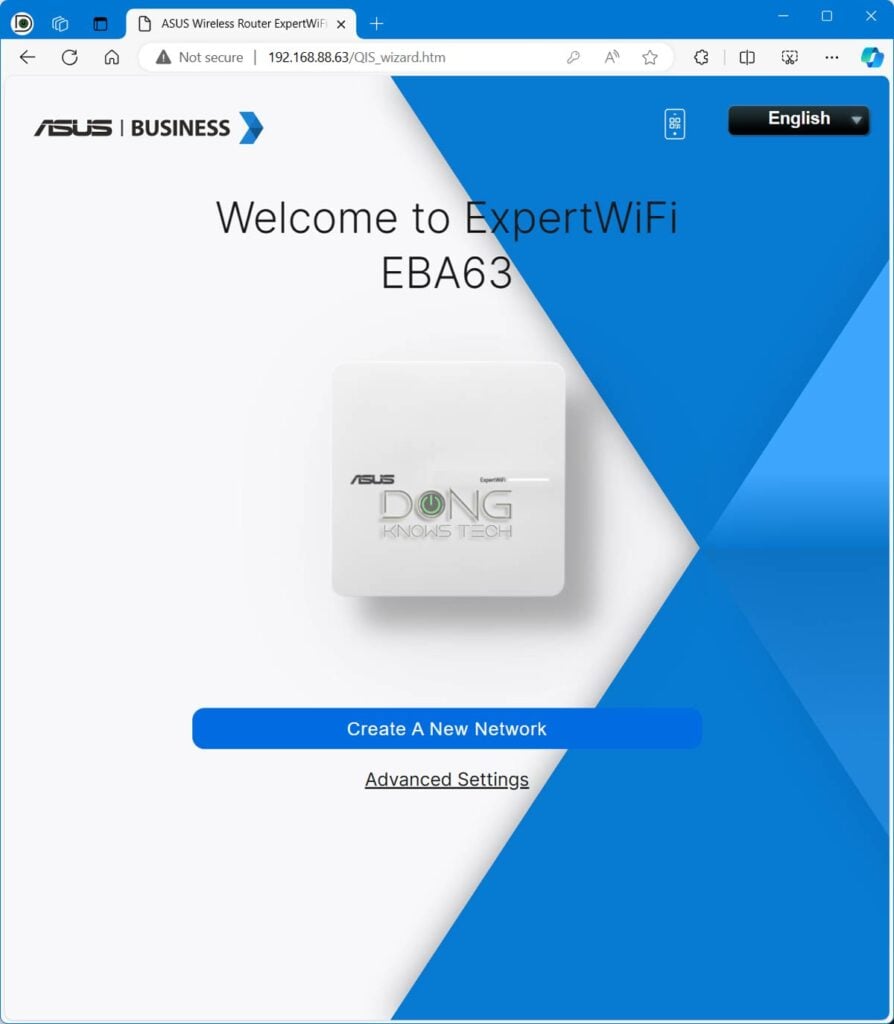

I tested the Asus ExpertWiFi EBG15 with the help of the EBA63, and it proved to be a robust little router. During my week-long trial, everything worked as intended.
As a Gigabit router, the EBG15's throughput speeds are capped at close to Gigabit at best, but I was able to get that kind of sustained rate out of my 10Gbps fiber-optic broadband connection.

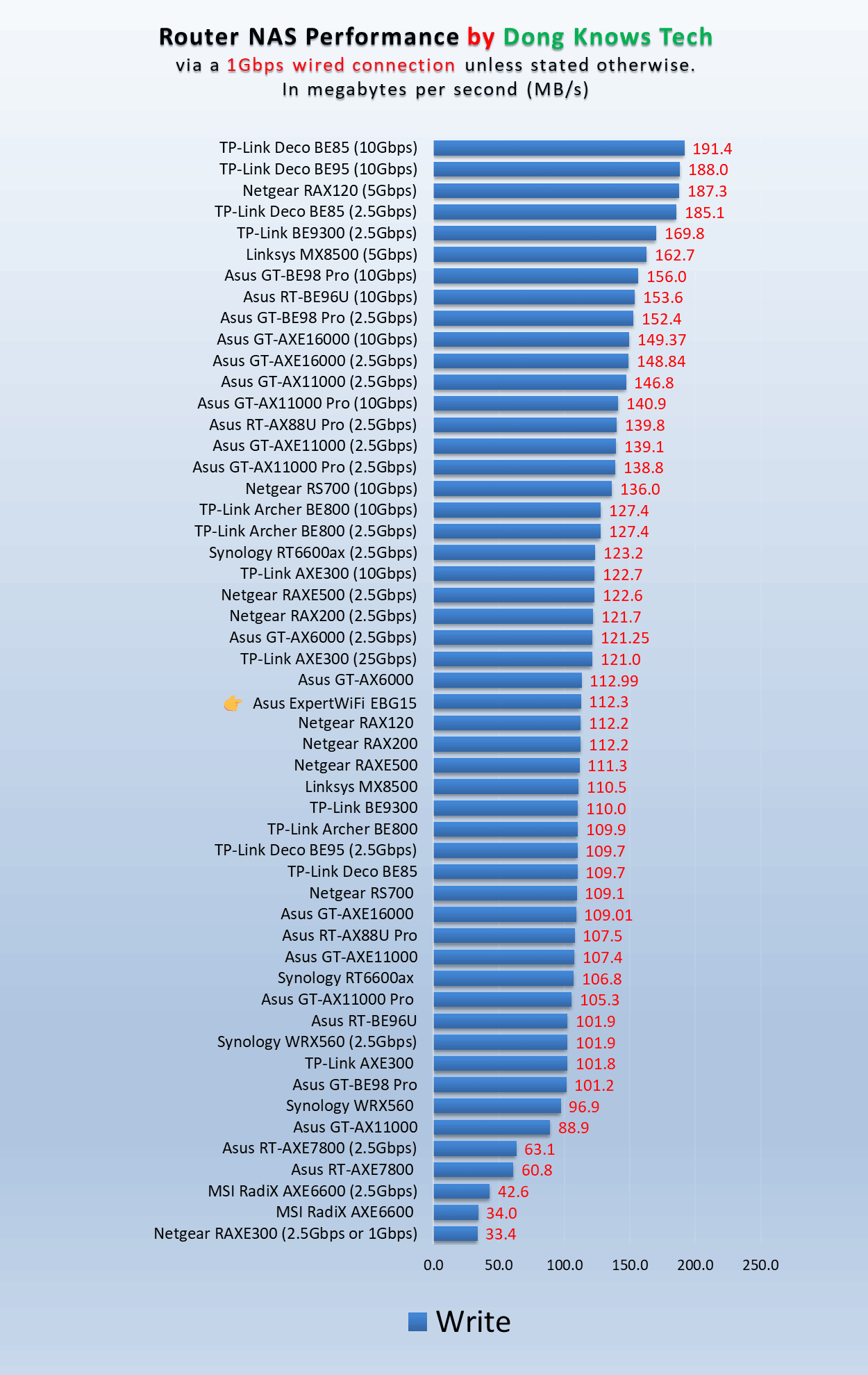

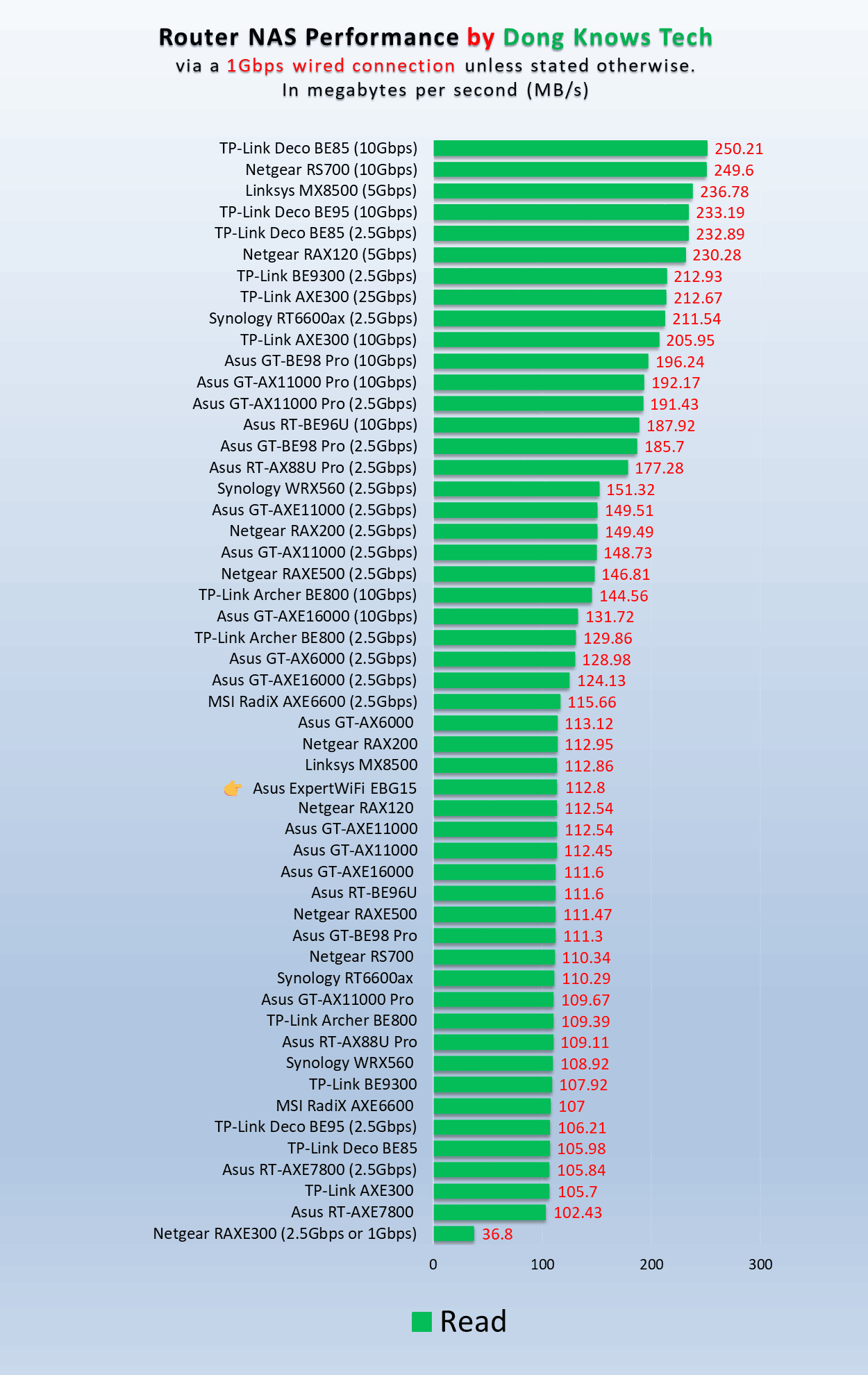

To put things in perspective, I tested the router's network storage feature by using its USB port to host a portable SSD, and its performance was exactly that of a Gigabit networking machine.
The ExpertWiFi EBG15 ran completely silent—it has no internal fan—and got just a little warm even during extended operations. Overall, it's a well-performing router for its hardware specs.
Asus ExpertWiFi EBG15 Router's Rating
Pros
Super-compact and feature-reach with a robust web user interface
Part of the ExpertWiFi family with lots of advanced features, including Software-Defined Networks and powerful VPN options
Excellent optional ExpertWiFi mobile app; can handle up to 4 WAN connections simultaneously
Cons
No Multi-Gig or PoE ports; no built-in Wi-Fi
Single main SSID when hosting an AiMesh broadcaster
Conclusion
The Asus ExpertWiFi EBG15 Gigabit VPN Wired Router is not for everyone. For one, it has no built-in Wi-Fi, and the fact that there's no Mulit-Gig port means it's stuck at Gigabit-class bandwidth.
However, for those with modest bandwidth needs, it's an excellent wired router that can quickly turn into a host for a powerful mesh system when you add a couple of Gigabit-class AiMesh broadcasters to the mix. Within that niche, at a suggested price of less than $100, it's a steal.
